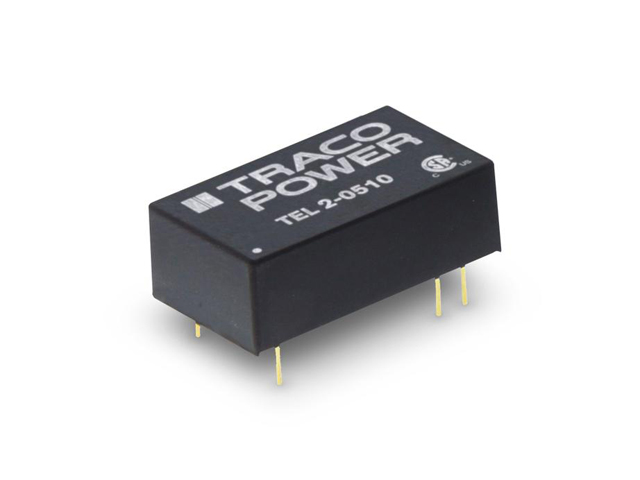

TEL 2-1223

Traco Power

MODULE DC-DC 12VIN 2-OUT -15V/15V -0.065A/0.065A 2W 6-PIN DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEL 2-1223

Traco Power

MODULE DC-DC 12VIN 2-OUT -15V/15V -0.065A/0.065A 2W 6-PIN DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEL 2-1223

Applications	ITE (Commercial)
Current - Output (Max)	65 mA
Current - Output (Max)	65 mA
Efficiency	78 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Package / Case	16-DIP Module
Package / Case	6 Leads
Power (Watts)	2 W
Size / Dimension [x]	23.8 mm
Size / Dimension [x]	0.94 in
Size / Dimension [y]	0.54 "
Size / Dimension [y]	13.7 mm
Size / Dimension [z]	0.31 in
Size / Dimension [z]	8 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TEL 2 Series

Part	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Type	Applications	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Features	Efficiency	Current - Output (Max) [Max]
Traco Power TEL 2-1223	Through Hole	65 mA	65 mA	-15 V	Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	2	16-DIP Module	6 Leads	-40 °C	75 ░C	18 V	9 V	15 V	2 W	SCP	78 %
Traco Power TEL 2-1210	Through Hole				Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	18 V	9 V	3.3 V	1.7 W	SCP	73 %	500 mA
Traco Power TEL 2-4821	Through Hole			-5 V	Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	2	16-DIP Module	6 Leads	-40 °C	75 ░C	75 V	36 V	5 V	2 W	SCP	71 %
Traco Power TEL 2-4811	Through Hole				Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	75 V	36 V	5 V	2 W	SCP	73 %	400 mA
Traco Power TEL 2-0522	Through Hole	85 mA	85 mA	-12 V	Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	2	16-DIP Module	6 Leads	-40 °C	75 ░C	9 V	4.5 V	12 V	2 W	SCP	69 %
Traco Power TEL 2-0512	Through Hole		165 mA		Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	9 V	4.5 V	12 V	2 W	SCP	75 %
Traco Power TEL 2-4823	Through Hole	65 mA	65 mA	-15 V	Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	2	16-DIP Module	6 Leads	-40 °C	75 ░C	75 V	36 V	15 V	2 W	SCP	77 %
Traco Power TEL 2-0511	Through Hole				Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	9 V	4.5 V	5 V	2 W	SCP	73 %	400 mA
Traco Power TEL 2-4810	Through Hole				Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	75 V	36 V	3.3 V	1.7 W	SCP	71 %	500 mA
Traco Power TEL 2-0510	Through Hole				Isolated Module	ITE (Commercial)	1.5 kV	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	1	16-DIP Module	6 Leads	-40 °C	75 ░C	9 V	4.5 V	3.3 V	1.7 W	SCP	70 %	500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.70
		10	$ 13.51
		25	$ 13.06
		50	$ 12.73
		100	$ 12.42
		250	$ 12.01
		500	$ 11.70

Description

General part information

TEL 2 Series

Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 9V - 18V Input
