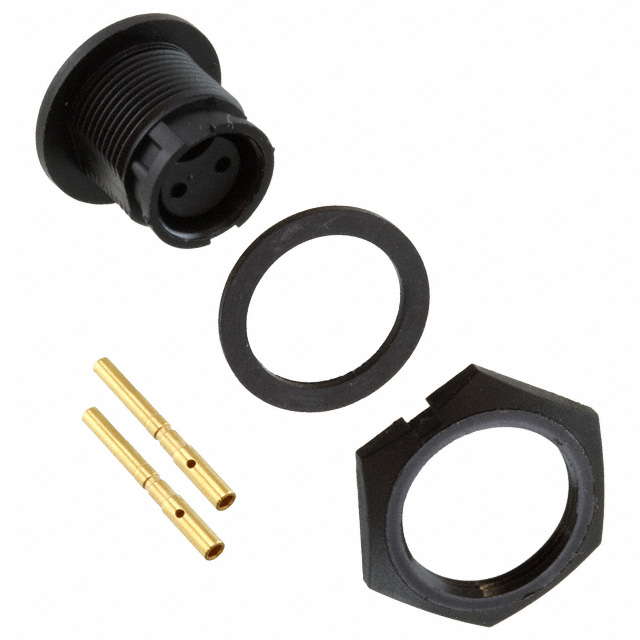

7280-2SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7280-2SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Ingress Protection	Current Rating (Amps)	Termination	Connector Type	Shielding	Backshell Material, Plating	Number of Positions	Applications	Color	Orientation	Voltage Rating	Contact Material	Fastening Type	Primary Material	Mounting Feature	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft 7280-2SG-300	Weathertight	Varies by Wire Gauge	Crimp	Receptacle Female Sockets	Unshielded	Nylon Polyamide (PA)	2	Automotive Communication Systems Instrumentation	Black	Keyed	600 V	Brass	Bayonet Lock	Plastic	Bulkhead - Front Side Nut	Gold	-40 °C	115 °C
