E3PBG

Active

Hoffman Enclosures, Inc.

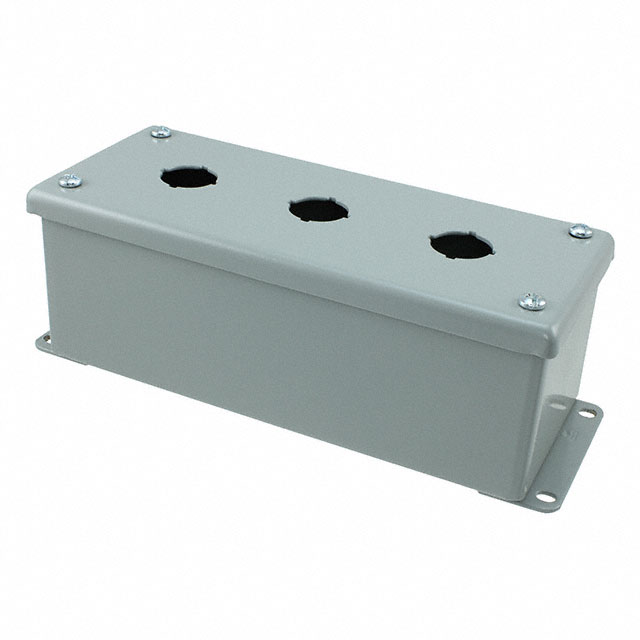

BOX STEEL GRAY 7.99"L X 3.27"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 7.99"L X 3.27"W

Technical Specifications

Parameters and characteristics for this part

Specification	E3PBG

Area (L x W)	26 in²
Area (L x W)	168 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Pushbutton Holes - 3
Height [z]	70 mm
Height [z]	2.756 "
Material	Metal, Steel
Ratings	IP65, NEMA 13, UL-508A, NEMA 12
Size / Dimension [x]	7.992 in
Size / Dimension [x]	203 mm
Size / Dimension [y]	3.268 in
Size / Dimension [y]	83 mm
Thickness	14 Gauge
Weight	1.2 kg
Weight	2.7 lbs

Part	Material	Color	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Design	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Weight	Weight	Container Type	Features
Hoffman Enclosures, Inc. E3PBG	Metal Steel	Gray	70 mm	2.756 "	26 in²	168 cm²	Cover Included	IP65 NEMA 12 NEMA 13 UL-508A	3.268 in	7.992 in	203 mm	83 mm	14 Gauge	1.2 kg	2.7 lbs	Box	Mounting Flange Pushbutton Holes - 3
Hoffman Enclosures, Inc. E3PBGXM	Metal Steel	Gray	89 mm	3.504 in	20 in²	129 cm²	Cover Included	IP65 NEMA 12 NEMA 13 UL-508A	2.756 in	7.244 in	184 mm	70 mm	14 Gauge	1.3 kg	2.8 lbs	Box	Mounting Flange Pushbutton Holes - 3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Gray Cover Included 7.992" L x 3.268" W (203.00mm x 83.00mm) X 2.756" (70.00mm)
