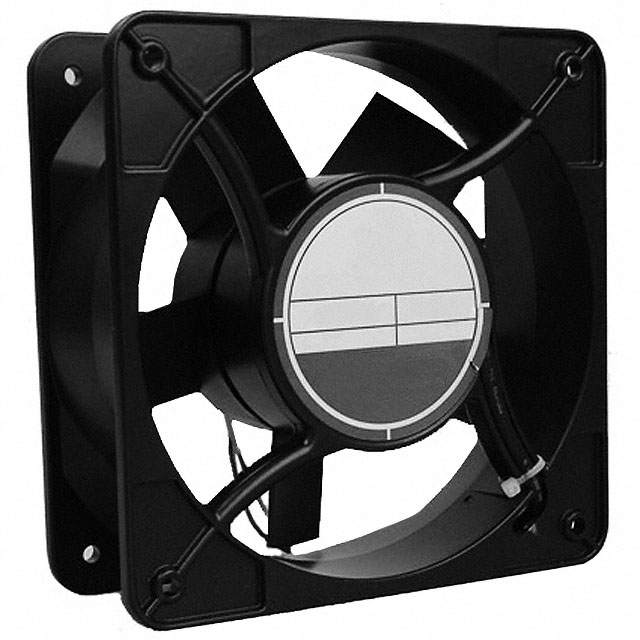

OD180APL-48HB

Active

Orion Fans

DC AXIAL FAN, 48 V, SQUARE, 180 MM, 65 MM, BALL BEARING, 460 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Miscellaneous EN +1

OD180APL-48HB

Active

Orion Fans

DC AXIAL FAN, 48 V, SQUARE, 180 MM, 65 MM, BALL BEARING, 460 CFM

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Miscellaneous EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD180APL-48HB

Air Flow	13.16 m³/min
Air Flow	470 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	1.03 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Auto Restart
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	49.4 W
RPM	3500 RPM
Size / Dimension	Square
Size / Dimension [x]	180 mm
Size / Dimension [y]	180 mm
Static Pressure	298.9 Pa
Static Pressure	1.2 in H2O
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Width	65 mm

OD180APL Series

Part	RPM	Approval Agency	Current Rating (Amps)	Termination	Air Flow	Air Flow	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Power (Watts)	Features	Static Pressure	Static Pressure	Voltage - Rated [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Width	Fan Type	Material - Blade	Lifetime @ Temp.	Noise	Material - Frame	Voltage - Rated	Operating Temperature [Max]
Orion Fans OD180APL-48HB	3500 RPM	cURus TUV	1.03 A	2 Wire Leads	13.16 m³/min	470 CFM	Ball	-20 °C	-20 C	65 °C	65 °C	49.4 W	Auto Restart Locked Rotor Protection	298.9 Pa	1.2 in H2O	48 VDC	180 mm	180 mm	Square	65 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60000 Hrs	65 dB	Aluminum
Orion Fans OD180APL-24LB	2200 RPM	cURus TUV	0.52 A	2 Wire Leads	8.4 mł/min	300 CFM	Ball	-20 °C	-20 C		75 ░C	13 W	Auto Restart Locked Rotor Protection	144.5 Pa	0.58 in H2O		180 mm	180 mm	Square	65 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60000 Hrs	46 dB(A)	Aluminum	24 VDC	75 °C
Orion Fans OD180APL-24HB	3500 RPM	cURus TUV	2.1 A	2 Wire Leads	13.16 m³/min	470 CFM	Ball	-20 °C	-20 C	65 °C	65 °C	50.4 W	Auto Restart Locked Rotor Protection	298.9 Pa	1.2 in H2O		180 mm	180 mm	Square	65 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60000 Hrs	65 dB	Aluminum	24 VDC
Orion Fans OD180APL-48MB	2800 RPM	cURus TUV	480 mA	2 Wire Leads	10.5 m³/min	375 CFM	Ball	-20 °C	-20 C	65 °C	65 °C		Auto Restart Locked Rotor Protection	174.4 Pa	0.7 in H2O	48 VDC	180 mm	180 mm	Square	65 mm	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60000 Hrs	53 dB	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 112.81
Newark	Each	1	$ 157.32
		1000	$ 144.21

Description

General part information

OD180APL Series

Fan Tubeaxial 48VDC Square - 180mm L x 180mm H Ball 470.0 CFM (13.16m³/min) 2 Wire Leads
