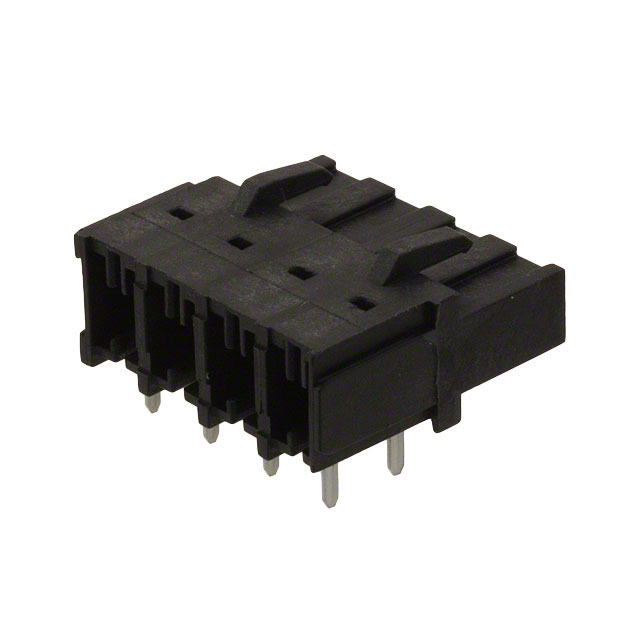

ELFB04230

Active

AMPHENOL PCD

TERM BLOCK HDR 4POS 90DEG 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK HDR 4POS 90DEG 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFB04230

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Contact Tail Length	0.123 in
Contact Tail Length	3.12 mm
Features	Retention Latches, Interlocking (Side)
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Insulation Height	0.391 in
Insulation Height	9.93 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	4
Operating Temperature	125 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Termination Style	Solder
Type	Header, Female Sockets
Voltage - UL	300 V

Part	Number of Positions	Pitch [x]	Pitch [x]	Color	Positions Per Level	Type	Operating Temperature	Mounting Type	Header Orientation	Material Flammability Rating	Contact Material	Termination Style	Number of Levels	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Voltage - UL	Housing Material	Features	Insulation Height	Insulation Height
AMPHENOL PCD ELFB04230	4	0.2 in	5.08 mm	Black	4	Header Female Sockets	125 °C	Through Hole	90° Right Angle	UL94 V-0	Phosphor Bronze	Solder	1	Tin	0.123 in	3.12 mm	300 V	Polyamide (PA46) Nylon 4/6	Interlocking (Side) Retention Latches	0.391 in	9.93 mm
