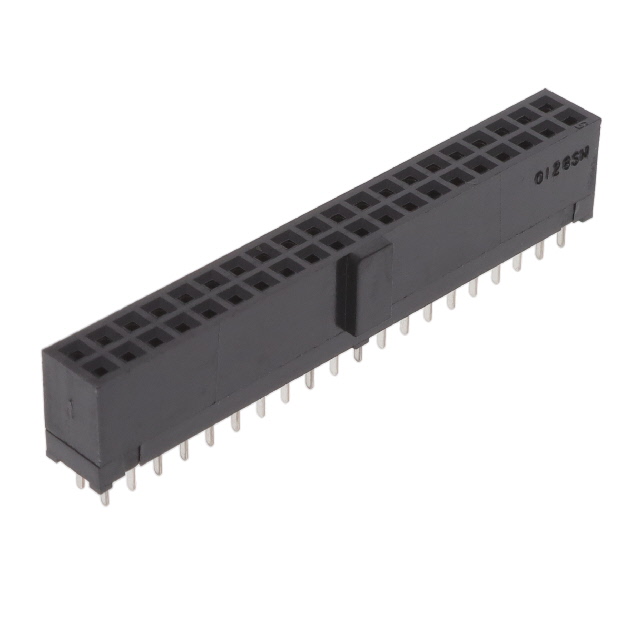

HIF3HA-40DA-2.54DSA(61)

Active

Hirose Electric USA, Inc.

CONN RCPT 40POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3HA-40DA-2.54DSA(61)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	9.5 mm
Insulation Height	0.374 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VAC

HIF3HA Series

Part	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Contact Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Mounting Type	Number of Positions	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Termination	Number of Rows	Voltage Rating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Style	Number of Positions
Hirose Electric USA, Inc. HIF3HA-34DA-2.54DSA(71)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	34	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in	Polarizing Key	Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin	General Purpose	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3HA-64DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	64	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire
Hirose Electric USA, Inc. HIF3HA-60DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	60	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire
Hirose Electric USA, Inc. HIF3HA-10DA-2.54DSA(71)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	10	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in	Polarizing Key	Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin	General Purpose	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3HA-50DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	50	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire
Hirose Electric USA, Inc. HIF3HA-16DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole		Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire	16
Hirose Electric USA, Inc. HIF3HA-60DA-2.54DSA(71)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	60	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in	Polarizing Key	Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin	General Purpose	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3HA-40DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	40	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire
Hirose Electric USA, Inc. HIF3HA-30DA-2.54DSA(71)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	30	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in	Polarizing Key	Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin	General Purpose	85 °C	-55 °C
Hirose Electric USA, Inc. HIF3HA-34DA-2.54DSA(61)	Square	Polybutylene Terephthalate (PBT)	9.5 mm	0.374 in	Female Socket	3 A	0.1 in	2.54 mm	Receptacle	Black	Gold	All	Tin	0.118 in	3 mm	Through Hole	34	Phosphor Bronze	1 çm	39.4 çin	2.54 mm	0.1 in		Solder	2	300 VAC	UL94 V-0	0.203 Ám	8 Áin		85 °C	-55 °C	Push-Pull	Board to Cable/Wire
