PXP9050/02/P/1

Active

BULGIN LIMITED

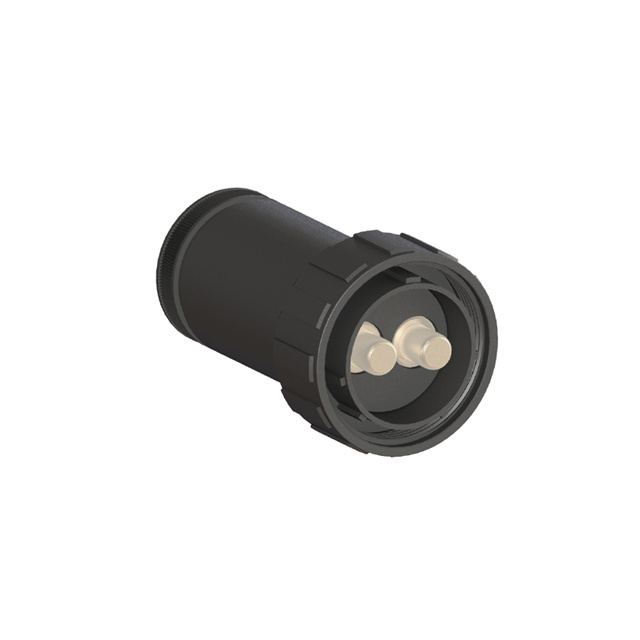

CONN PLUG 2POS W/PINS 4/0

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN PLUG 2POS W/PINS 4/0

Technical Specifications

Parameters and characteristics for this part

Specification	PXP9050/02/P/1

Cable Opening [diameter]	48.26 mm
Cable Opening [diameter]	1.9 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyoxymethylene (POM), Acetal
Shielding	Unshielded
Termination	Crimp

Part	Color	Contact Finish - Mating	Shielding	Orientation	Contact Material	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Features	Material Flammability Rating	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Primary Material
BULGIN LIMITED PXP9050/02/P/1	Black	Silver	Unshielded	Keyed	Copper Alloy	IP68 - Dust Tight Waterproof	48.26 mm	1.9 in	Acetal Polyoxymethylene (POM)	Backshell Coupling Nut	UL94 V-0	Crimp	Male Pins Plug	-55 °C	125 °C	Free Hanging (In-Line)	2	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Plug, Male Pins Crimp
