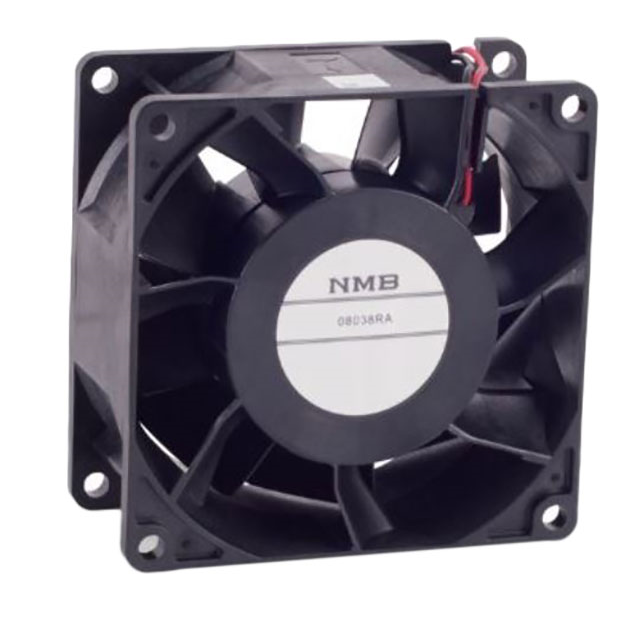

08038RA-12Q-EU-04

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 38 MM, BALL BEARING, 91.8 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 80 MM, 38 MM, BALL BEARING, 91.8 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	08038RA-12Q-EU-04

Air Flow	91.8 CFM
Air Flow	2.57 m³/min
Approval Agency	CE, cULus, VDE
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	13.8 W
RPM	6500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	258 Pa
Static Pressure	1.04 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Width [y]	38 mm

Part	Termination	Air Flow	Air Flow	Static Pressure	Static Pressure	RPM	Noise	Voltage - Rated	Bearing Type	Power (Watts)	Material - Blade	Current Rating (Amps)	Fan Type	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Features	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Width [y]	Approval Agency
NMB TECHNOLOGIES 08038RA-24Q-GA-00	2 Wire Leads	91.8 CFM	2.57 m³/min	258 Pa	1.04 in H2O	6500 RPM	56 dB	24 VDC	Ball	14.4 W	Plastic	600 mA	Tubeaxial	IP69K - Dust Tight High Temp Water Jets Waterproof	80 mm	80 mm	Auto Restart	80000 Hrs	27.6 VDC	14 VDC	70 °C	70 °C	-10 °C	-10 °C	Plastic	38 mm
NMB TECHNOLOGIES 08038RA-12Q-EU-04	4 Wire Leads	91.8 CFM	2.57 m³/min	258 Pa	1.04 in H2O	6500 RPM	56 dB	12 VDC	Ball	13.8 W	Plastic		Tubeaxial		80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	80000 Hrs	13.2 VDC	7 V	70 °C	70 °C	-10 °C	-10 °C	Plastic	38 mm	CE cULus VDE
NMB TECHNOLOGIES 08038RA-24S-EA-00	2 Wire Leads							24 VDC	Ball		Plastic		Tubeaxial	IP69K - Dust Tight High Temp Water Jets Waterproof	80 mm	80 mm	Auto Restart				70 °C	70 °C	-10 °C	-10 °C	Plastic	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 91.8 CFM (2.57m³/min) 4 Wire Leads
