ADP-SMAF-NM

Active

TE Connectivity Linx

SMA JACK TO N PLUG ADAPTER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADP-SMAF-NM

Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

ADP-SMAF Series

Part	Center Contact Plating	Mounting Type	Adapter Series	Style	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Mating Cycles	Convert To (Adapter End)	Center Gender	Body Finish	Body Material	Dielectric Material	Adapter Type	Impedance	Convert From (Adapter End)	Frequency - Max [Max]	Mounting Feature	Fastening Type
TE Connectivity Linx ADP-SMAF-SMAF	Gold	Free Hanging (In-Line)	SMA to SMA	Straight	Same Series	-65 ░C	165 °C	Beryllium Copper	500	Female Socket SMA Jack	Female to Female	Nickel	Brass	Polytetrafluoroethylene (PTFE)	Jack to Jack	50 Ohms	Female Socket SMA Jack	12.4 GHz
TE Connectivity Linx ADP-SMAF-SMAF-SSB-G	Gold		SMA to SMA	Straight	Same Series	-65 ░C	165 °C	Beryllium Copper	500	Female Socket SMA Jack	Female to Female	Gold	Stainless Steel	Polytetrafluoroethylene (PTFE)	Jack to Jack	50 Ohms	Female Socket SMA Jack	18 GHz	Bulkhead
TE Connectivity Linx ADP-SMAF-MMXM	Gold	Free Hanging (In-Line)	SMA to MMCX	Straight	Between Series	-55 °C	125 °C	Beryllium Copper	500	Male Pin MMCX Plug		Gold	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Female Socket SMA Jack	6000 MHz		Snap-On Threaded
TE Connectivity Linx ADP-SMAF-NM	Gold	Free Hanging (In-Line)		Straight	Between Series	-55 °C	125 °C	Beryllium Copper	500	Male Pin N Plug		Nickel	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Female Socket SMA Jack	11 GHz
TE Connectivity Linx ADP-SMAF-MCXM	Gold	Free Hanging (In-Line)	SMA to MCX	Straight	Between Series	-65 ░C	165 °C	Beryllium Copper	500	Male Pin MCX Plug		Gold	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Female Socket SMA Jack	6000 MHz		Snap-On Threaded
TE Connectivity Linx ADP-SMAF-SMBM-G	Gold	Free Hanging (In-Line)	SMA to SMB	Straight	Between Series	-65 ░C	165 °C	Beryllium Copper	500	Female Socket SMB Plug	Female to Female	Gold	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Female Socket SMA Jack	4 GHz		Snap-On Threaded
TE Connectivity Linx ADP-SMAF-BNCM	Gold	Free Hanging (In-Line)	BNC to SMA	Straight	Between Series	-55 °C	125 °C	Beryllium Copper	500	Female Socket SMA Jack		Nickel	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	BNC Plug Male Pin	4 GHz		Bayonet Lock Threaded
TE Connectivity Linx ADP-SMAF-SMAF-G	Gold	Free Hanging (In-Line)	SMA to SMA	Straight	Same Series	-65 ░C	165 °C	Beryllium Copper	500	Female Socket SMA Jack	Female to Female	Gold	Brass	Polytetrafluoroethylene (PTFE)	Jack to Jack	50 Ohms	Female Socket SMA Jack	18 GHz
TE Connectivity Linx ADP-SMAF-UFLM	Gold	Free Hanging (In-Line)	SMA to U.FL	Straight	Between Series	-65 ░C	165 °C	Beryllium Copper	500	Female Socket U.FL Plug	Female to Female	Gold	Brass	Polytetrafluoroethylene (PTFE)	Plug to Jack	50 Ohms	Female Socket SMA Jack	6000 MHz		Snap-On Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.70
		250	$ 11.13
		500	$ 10.67

Description

General part information

ADP-SMAF Series

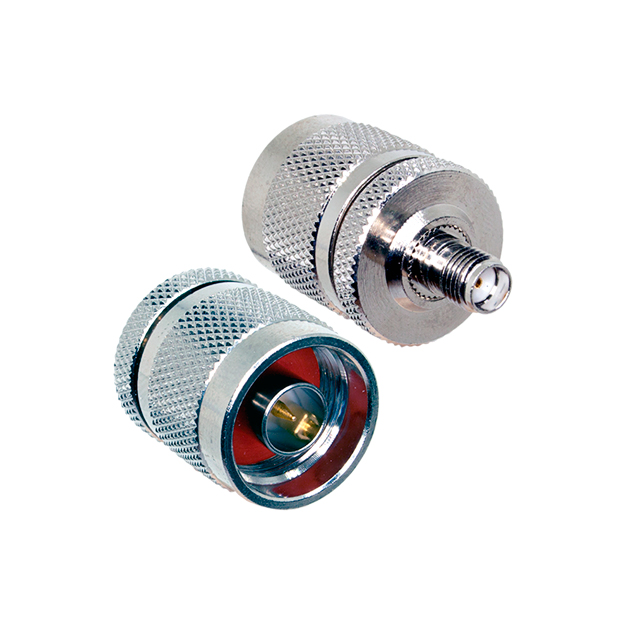

Adapter Coaxial Connector SMA Jack, Female Socket To N Plug, Male Pin 50 Ohms
