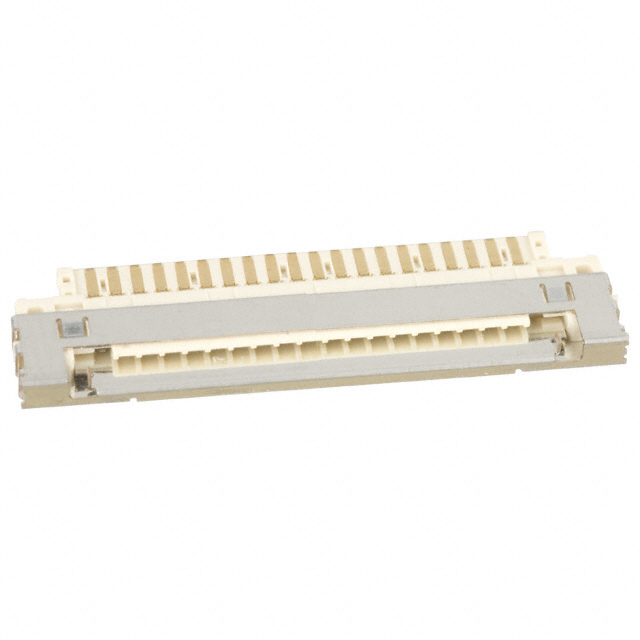

FI-X20M-NPB
ObsoleteJAE Electronics
CONN PLUG 20POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FI-X20M-NPB
ObsoleteJAE Electronics
CONN PLUG 20POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-X20M-NPB |
|---|---|
| Color | Beige |
| Connector Type | Plug |
| Contact Finish | Gold |
| Fastening Type | Friction Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Wire Type | Flat Flexible Cable |
FI-X20 Series
| Part | Connector Type | Contact Type | Contact Termination | Note | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Wire Type | Color | Fastening Type | Contact Material | Style | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish - Post | Insulation Material | Insulation Color | Features | Number of Positions Loaded | Insulation Height | Insulation Height | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Plug | Male Pin | Crimp | Contacts Not Included | Free Hanging (In-Line) | 1 | 0.039 in | 1 mm | 20 | |||||||||||||||||||||||||
JAE Electronics | Plug | Free Hanging (In-Line) | 1 | 0.039 in | 1 mm | 20 | Gold | Flat Flexible Cable | Beige | Friction Lock | ||||||||||||||||||||||||
JAE Electronics | Receptacle | Non-Gendered | Surface Mount Right Angle | 1 | 20 | Friction Lock | Copper Alloy | Board to Cable/Wire | Gold | 0.039 in | 1 mm | 200 V | Tin | Plastic | Beige | Grounding Pins Shielded Solder Retention | All | 0.061 " | 1.55 mm | Solder | -40 °C | 80 C | 0.099 µm | 3.9 µin | General Purpose | UL94 V-0 | 1 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FI-X20 Series
20 Position Rectangular Plug Connector Gold
