J107F1CS1524VDC.45

Active

CIT Relay and Switch

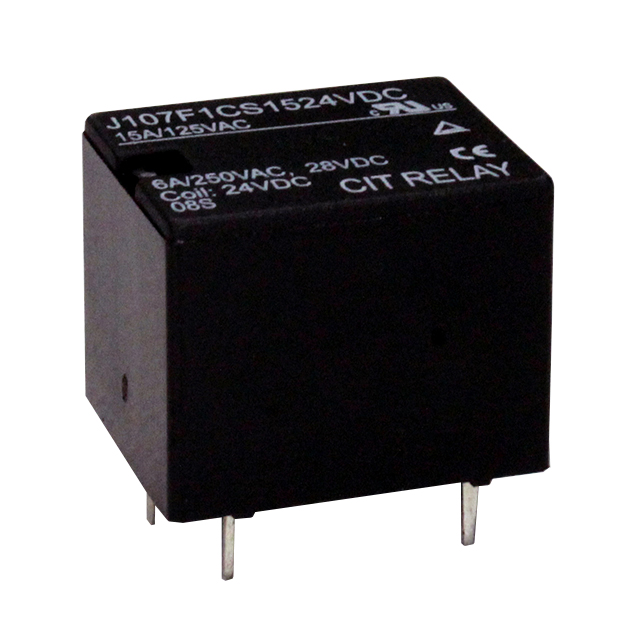

RELAY GEN PURPOSE SPDT 15A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J107F1CS1524VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 15A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J107F1CS1524VDC.45

Approval Agency	cURus, TUV
Coil Current	18.8 mA
Coil Insulation	Class F
Coil Resistance	1280 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	15 A
Load - Max Switching	5700 VA, 1650 W
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage	110 VDC, 380 VAC
Termination Style	PC Pin

J107F1CS Series

Part	Switching Voltage	Relay Type	Coil Resistance	Load - Max Switching	Must Release Voltage	Coil Current	Contact Material	Coil Type	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Coil Insulation	Approval Agency	Release Time	Termination Style	Seal Rating	Must Operate Voltage	Operate Time	Contact Form	Mounting Type	Coil Voltage
CIT Relay and Switch J107F1CS203VDC.45	110 VDC 380 VAC	General Purpose	20 Ohms	2200 W 7600 VA	0.3 VDC	150 mA	Silver Tin Oxide (AgSnO)	Non Latching	20 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	2.25 VDC	10 ms	SPDT (1 Form C)	Through Hole
CIT Relay and Switch J107F1CS1248VDC.80	110 VDC 380 VAC	General Purpose	2.88 kOhms	1320 W 4560 VA	4.8 VDC	16.7 mA	Silver Tin Oxide (AgSnO)	Non Latching	12 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	36 VDC	10 ms	SPDT (1 Form C)	Through Hole	48 VDC
CIT Relay and Switch J107F1CS1224VDC.45	110 VDC 380 VAC	General Purpose	1280 Ohms	1320 W 4560 VA	2.4 VDC	18.8 mA	Silver Tin Oxide (AgSnO)	Non Latching	12 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	18 VDC	10 ms	SPDT (1 Form C)	Through Hole	24 VDC
CIT Relay and Switch J107F1CS153VDC.36	110 VDC 380 VAC	General Purpose	25 Ohms	1650 W 5700 VA	0.3 VDC	120 mA	Silver Tin Oxide (AgSnO)	Non Latching	15 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	2.25 VDC	10 ms	SPDT (1 Form C)	Through Hole
CIT Relay and Switch J107F1CS159VDC.36	110 VDC 380 VAC	General Purpose	225 Ohms	1650 W 5700 VA	0.9 VDC	40 mA	Silver Tin Oxide (AgSnO)	Non Latching	15 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	6.75 VDC	10 ms	SPDT (1 Form C)	Through Hole	9 VDC
CIT Relay and Switch J107F1CS155VDC.36	110 VDC 380 VAC	General Purpose	70 Ohms	1650 W 5700 VA	0.5 VDC	71.4 mA	Silver Tin Oxide (AgSnO)	Non Latching	15 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	3.75 VDC	10 ms	SPDT (1 Form C)	Through Hole	5 VDC
CIT Relay and Switch J107F1CS153VDC.45	110 VDC 380 VAC	General Purpose	20 Ohms	1650 W 5700 VA	0.3 VDC	150 mA	Silver Tin Oxide (AgSnO)	Non Latching	15 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	2.25 VDC	10 ms	SPDT (1 Form C)	Through Hole
CIT Relay and Switch J107F1CS2024VDC.45	110 VDC 380 VAC	General Purpose	1280 Ohms	2200 W 7600 VA	2.4 VDC	18.8 mA	Silver Tin Oxide (AgSnO)	Non Latching	20 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	18 VDC	10 ms	SPDT (1 Form C)	Through Hole	24 VDC
CIT Relay and Switch J107F1CS125VDC.80	110 VDC 380 VAC	General Purpose	31 Ohms	1320 W 4560 VA	0.5 VDC	161.3 mA	Silver Tin Oxide (AgSnO)	Non Latching	12 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	3.75 VDC	10 ms	SPDT (1 Form C)	Through Hole	5 VDC
CIT Relay and Switch J107F1CS1524VDC.45	110 VDC 380 VAC	General Purpose	1280 Ohms	1650 W 5700 VA	2.4 VDC	18.8 mA	Silver Tin Oxide (AgSnO)	Non Latching	15 A	-55 °C	125 °C	Class F	cURus TUV	5 ms	PC Pin	Sealed - Fully	18 VDC	10 ms	SPDT (1 Form C)	Through Hole	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.64

Description

General part information

J107F1CS Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
