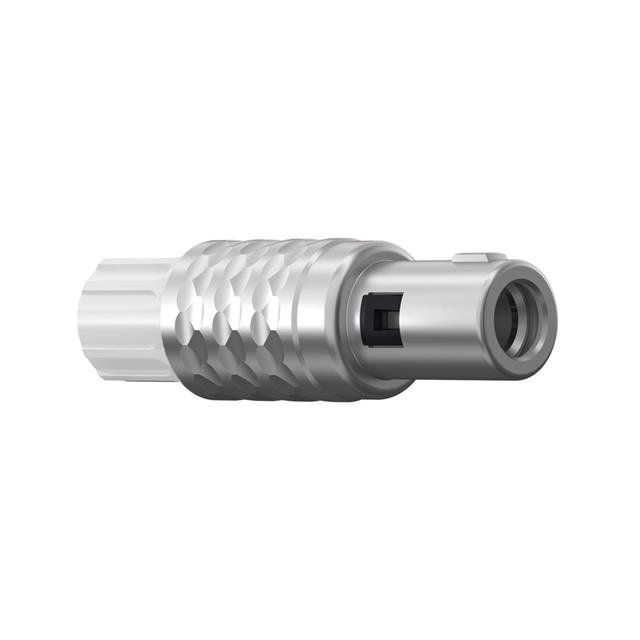

S11M0C-P06MFG0-5230

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S11M0C-P06MFG0-5230

Active

ODU

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S11M0C-P06MFG0-5230

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	0.205 in
Cable Opening [Max] [custom]	5.2 mm
Cable Opening [Min] [custom]	0.157 in
Cable Opening [Min] [custom]	4 mm
Color	White, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	33 V

S11M0C-P Series

Part	Shell Size - Insert	Color	Shielding	Current Rating (Amps)	Applications	Insert Material	Mounting Type	Ingress Protection	Shell Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish - Mating	Connector Type	Fastening Type	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Finish	Features	Voltage Rating	Number of Positions	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
ODU S11M0C-P12MCC9-52C0	1	Silver	Unshielded	4 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal	0.157 in	0.205 in	4 mm	5.2 mm	Chrome	Backshell	25 V	12	Brass
ODU S11M0C-P12MCC9-6520	1	Red Silver	Unshielded	4 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	25 V	12	Brass	0.209 in 0.256 in	5.3 mm 6.5 mm
ODU S11M0C-P05MJG0-3940	1		Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	35 V		Brass			2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M0C-P07MFG0-3950	1	Green Silver	Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	33 V	7	Brass			2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M0C-P07MFG0-6520	1	Red Silver	Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	33 V	7	Brass	0.209 in 0.256 in	5.3 mm 6.5 mm
ODU S11M0C-P06MFG0-3950	1	Green Silver	Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	33 V	6	Brass			2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M0C-P06MFG0-3920	1	Red Silver	Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	33 V	6	Brass			2.7 mm	0.154 in	3.9 mm	0.106 in
ODU S11M0C-P10MCC0-52C0	1	Silver	Unshielded	4 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal	0.157 in	0.205 in	4 mm	5.2 mm	Chrome	Backshell	25 V	10	Brass
ODU S11M0C-P06MFG0-6540	1		Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal					Chrome	Backshell	33 V	6	Brass	0.209 in 0.256 in	5.3 mm 6.5 mm
ODU S11M0C-P06MFG0-5230	1	Silver White	Unshielded	7.5 A	Industrial Measurement Medical Testing Equipment	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	IP50	Brass	Brass Chrome	-50 °C	120 °C	UL94 V-0	Gold	Male Pins Plug	Detent Lock Push-Pull	Metal	0.157 in	0.205 in	4 mm	5.2 mm	Chrome	Backshell	33 V	6	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.90
LCSC	Piece	1	$ 74.78
		200	$ 29.84
		500	$ 28.84
		1000	$ 28.35

Description

General part information

S11M0C-P Series

6 Position Circular Connector Plug, Male Pins Solder Cup
