LM2-8-1-G
ActiveSwitch Components

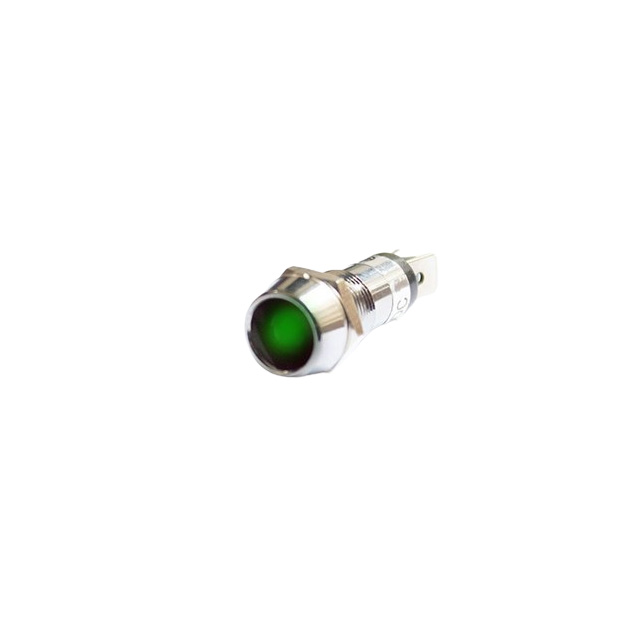

LED INDICATOR 8MM - GREEN, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM2-8-1-G
ActiveSwitch Components
LED INDICATOR 8MM - GREEN, SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2-8-1-G |
|---|---|
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 8 mm |
| Lens Style | Round with Protrusive Head |
| Lens Transparency | Diffused |
| Millicandela Rating | 50 mcd |
| Panel Cutout Dimensions | 11.2 mm |
| Panel Cutout Dimensions | 0.44 in |
| Panel Cutout Shape | Round |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.12 | |
| 10 | $ 5.23 | |||
| 25 | $ 4.34 | |||
| 50 | $ 3.94 | |||
| 100 | $ 3.49 | |||
| 250 | $ 3.22 | |||
| 500 | $ 2.91 | |||
| 1000 | $ 2.63 | |||
Description
General part information
LM2-8 Series
LED Panel Indicator Green Diffused 30° 2.1V 20mA Quick Connect - 0.250" (6.3mm)
