0022566087

Active

Molex

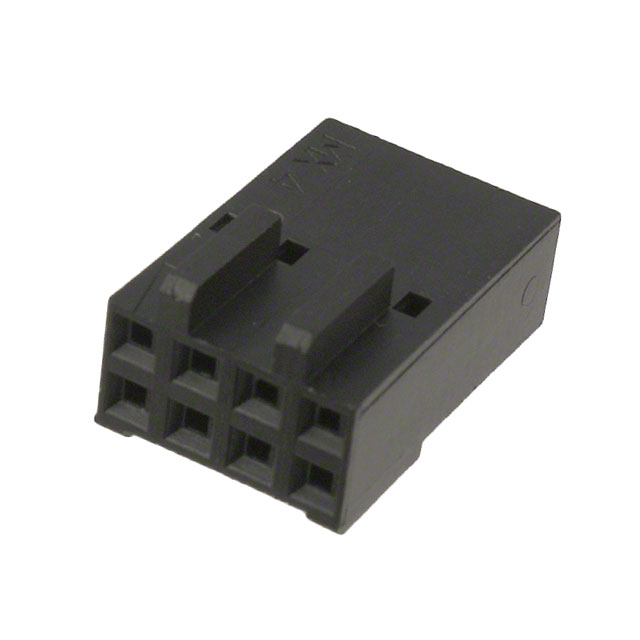

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents70400 Prod Spec 70066, 70058 SL Test Summary

0022566087

Active

Molex

CONN RCPT HSG 8POS 2.54MM

Deep-Dive with AI

Documents70400 Prod Spec 70066, 70058 SL Test Summary

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022566087

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

002256 Series

Part	Contact Type	Pitch [x]	Pitch [x]	Mounting Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Row Spacing [x]	Row Spacing	Number of Rows	Contact Termination	Color	Insulation Material	Fastening Type	Features
Molex 0022566107	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	10	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566207	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	20	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566407	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	40	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566507	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	50	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566267	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	26	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566127	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	12	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566247	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	24	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566287	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	28	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022566087	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	-40 °C	105 ░C	8	Receptacle	0.1 in	2.54 mm	2	Crimp	Black	Polyester Glass Filled
Molex 0022568087	Female Socket	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included			8	Receptacle	0.1 in	2.54 mm	2	Crimp		Polyester Glass Filled	Locking Ramp	Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.49
		10	$ 1.27
		100	$ 1.05
		1000	$ 0.83
		2500	$ 0.77

Description

General part information

002256 Series

8 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

70400 Prod Spec

Datasheet
