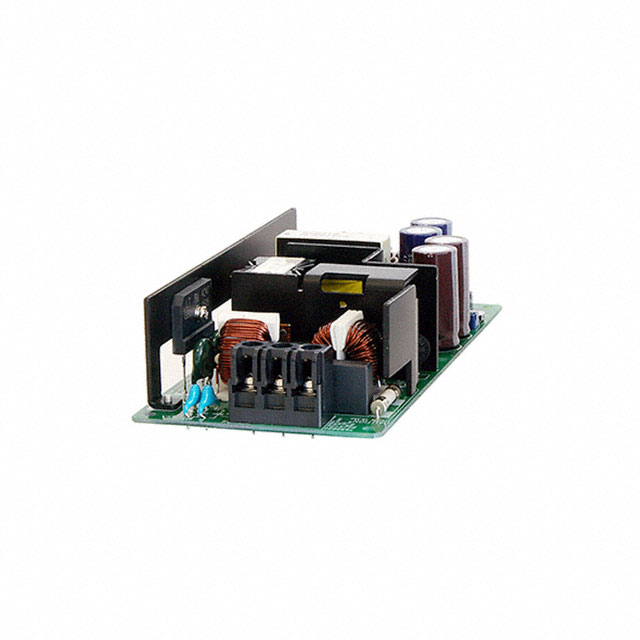

EVS36-8R4/R
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 302.4 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 36 V
Deep-Dive with AI
Search across all available documentation for this part.
EVS36-8R4/R
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 302.4 W, 85V AC TO 265V AC, ADJUSTABLE, FIXED, 36 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVS36-8R4/R |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 8.4 A |
| Efficiency | 91 % |
| Features | PFC, Universal Input, Adjustable Output, DC Input Capable, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 7.09 in |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 84 mm |
| Size / Dimension [y] | 3.31 " |
| Size / Dimension [z] | 1.65 " |
| Size / Dimension [z] | 42 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVS36 Series
Enclosed AC DC Converters 1 Output 36V 85 ~ 265 VAC Input
