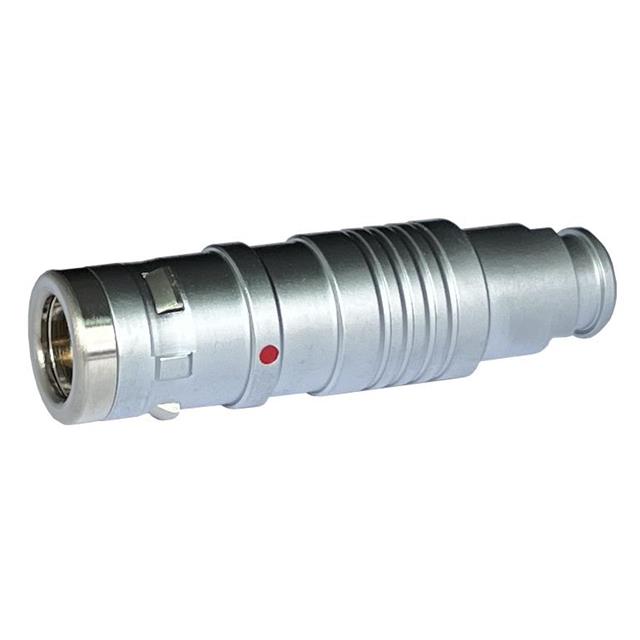

MMI-M1PG10S52B-IP67

Active

Adam Tech

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-M1PG10S52B-IP67

Active

Adam Tech

CONN PLUG MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-M1PG10S52B-IP67

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Voltage Rating	200 V

MMI-M1PG Series

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Finish	Features	Shielding	Contact Material	Mounting Type	Voltage Rating	Fastening Type	Color	Connector Type	Orientation	Current Rating (Amps)	Primary Material	Number of Positions	Contact Finish - Mating	Shell Material
Adam Tech MMI-M1PG04S52	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell	Unshielded	Brass	Free Hanging (In-Line)	250 VDC	Push-Pull	Silver	Male Pins Plug	G	8 A	Metal	4	Gold	Brass
Adam Tech MMI-M1PG04S52B	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell Strain Relief	Unshielded	Brass	Free Hanging (In-Line)	250 VDC	Push-Pull	Silver	Male Pins Plug	G	8 A	Metal	4	Gold	Brass
Adam Tech MMI-M1PG08S52B	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell Strain Relief	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	5 A	Metal	8	Gold	Brass
Adam Tech MMI-M1PG06S52	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	5 A	Metal	6	Gold	Brass
Adam Tech MMI-M1PG08S62	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	5 A	Metal	8	Gold	Brass
Adam Tech MMI-M1PG02S52B	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell Strain Relief	Unshielded	Brass	Free Hanging (In-Line)	300 VDC	Push-Pull	Silver	Male Pins Plug	G	9 A	Metal	2	Gold	Brass
Adam Tech MMI-M1PG03S52	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell	Unshielded	Brass	Free Hanging (In-Line)	300 VDC	Push-Pull	Silver	Male Pins Plug	G	9 A	Metal		Gold	Brass
Adam Tech MMI-M1PG10S52B-IP67	IP67 - Dust Tight Waterproof	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell Strain Relief	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	2 A	Metal	10	Gold	Brass
Adam Tech MMI-M1PG10S52B	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell Strain Relief	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	2 A	Metal	10	Gold	Brass
Adam Tech MMI-M1PG08S52	IP50	-55 °C	150 °C	Polyphenylene Sulfide (PPS)	Chrome	Backshell	Unshielded	Brass	Free Hanging (In-Line)	200 V	Push-Pull	Silver	Male Pins Plug	G	5 A	Metal	8	Gold	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 28.24
		10	$ 23.02
		30	$ 20.88
		50	$ 19.96

Description

General part information

MMI-M1PG Series

10 Position Circular Connector Plug, Male Pins Solder Cup
