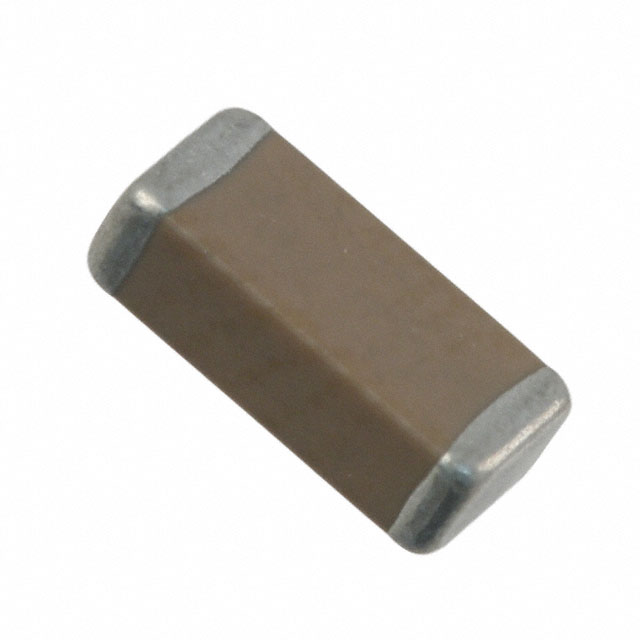

VPCT102W102K1GV001E
ActiveJOHANSON DIELECTRICS
CAP CER 1000PF 1KV X7R 0805
Deep-Dive with AI
Search across all available documentation for this part.
VPCT102W102K1GV001E
ActiveJOHANSON DIELECTRICS
CAP CER 1000PF 1KV X7R 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VPCT102W102K1GV001E |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 0.001 µF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2.03 mm |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [y] | 0.05 " |
| Size / Dimension [y] | 1.27 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 1.4 mm |
| Thickness (Max) [Max] [custom] | 0.055 in |
| Tolerance | 10 % |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.25 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.25 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
VPCT102 Series
1000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 0805 (2012 Metric)
