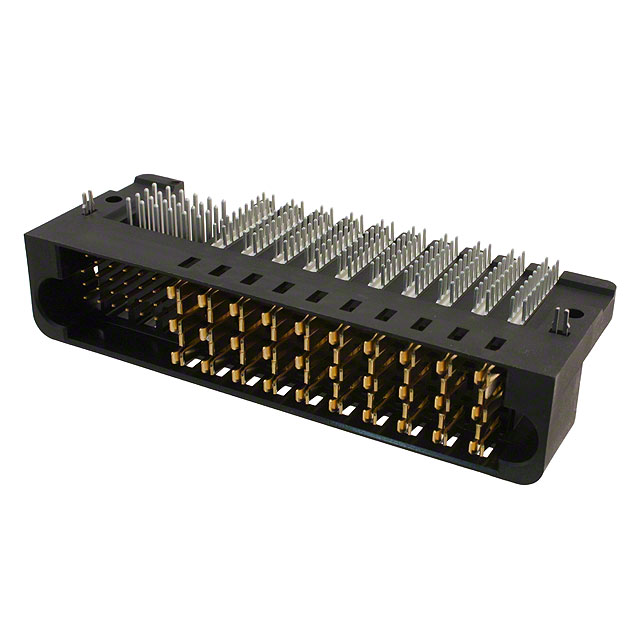

10065864-003LF

Unknown

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 34POS PCB

Search across all available documentation for this part.

Unknown

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 34POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10065864-003LF

Color	Black
Connector Style	Blade Power
Connector Type	Header, Male Pins and Blades
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	10
Features	Board Lock, Mating Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Termination	Solder

Part	Number of Positions Loaded	Connector Type	Material Flammability Rating	Contact Finish	Pitch [x]	Pitch [x]	Termination	Connector Style	Color	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 10065864-001LF	All	Header Male Pins and Blades	UL94 V-0	Gold or Gold GXT™	2.54 mm	0.1 in	Solder	Power	Black	Board Lock Mating Guide	34	0.76 Ám	30 Áin	24	10	Through Hole Right Angle	-65 ░C	105 ░C
Amphenol ICC (FCI) 10065864-003LF	All	Header Male Pins and Blades	UL94 V-0				Solder	Blade Power	Black	Board Lock Mating Guide	34	0.76 Ám	30 Áin	24	10	Through Hole Right Angle	-65 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	72	$ 40.35

General part information

34 Connector Header, Male Pins and Blades Through Hole, Right Angle Black Blade Power
