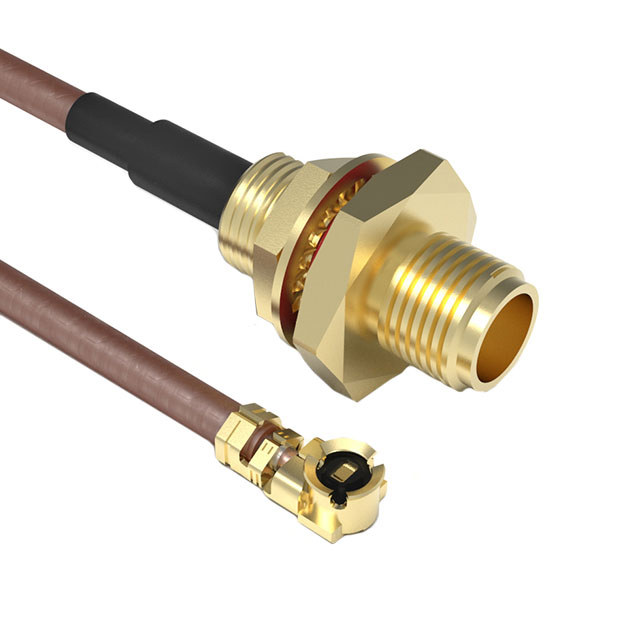

CABLE 162 RF-100-A-1
ActiveGCT
CBL ASY IPEX MHF1-SMA J-P 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
CABLE 162 RF-100-A-1
ActiveGCT
CBL ASY IPEX MHF1-SMA J-P 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 162 RF-100-A-1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Rear Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.71 | |
| 10 | $ 9.64 | |||
| 25 | $ 9.08 | |||
| 50 | $ 8.85 | |||
| 100 | $ 8.61 | |||
| 250 | $ 7.68 | |||
| 500 | $ 7.22 | |||
| 1000 | $ 6.38 | |||
Description
General part information
CABLE 162 Series
Cable Assembly Coaxial IPEX MHF1 to SMA RG-178 3.937" (100.00mm)
