CONSMB001-SMD-G

Active

TE Connectivity Linx

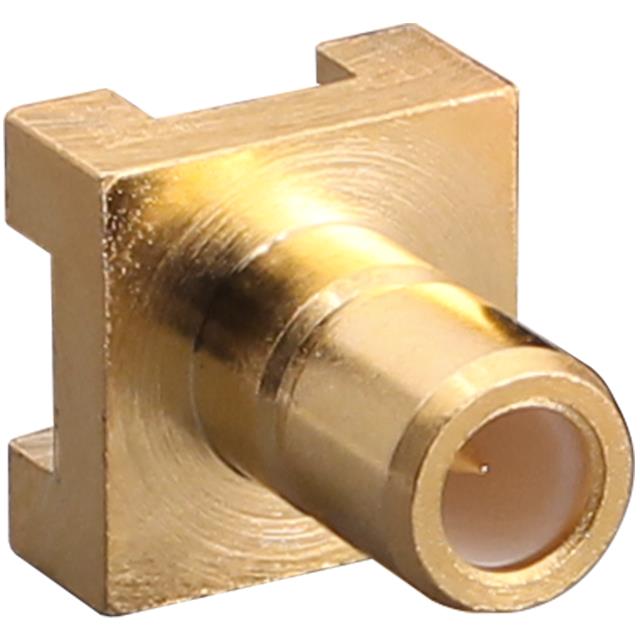

CONN SMB JACK STR 50 OHM SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

CONN SMB JACK STR 50 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CONSMB001-SMD-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	750 VDC

Part	Number of Ports	Frequency - Max [Max]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Shield Termination	Fastening Type	Mating Cycles	Connector Style	Voltage Rating	Body Material	Center Contact Plating	Mounting Type	Impedance	Body Finish	Center Contact Material	Housing Color
TE Connectivity Linx CONSMB001-SMD-G	1	12 GHz	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Solder	Jack Male Pin	Solder	Snap-On	500	SMB	750 VDC	Brass	Gold	Surface Mount	50 Ohms	Gold	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Male Pin 50 Ohms Surface Mount Solder
