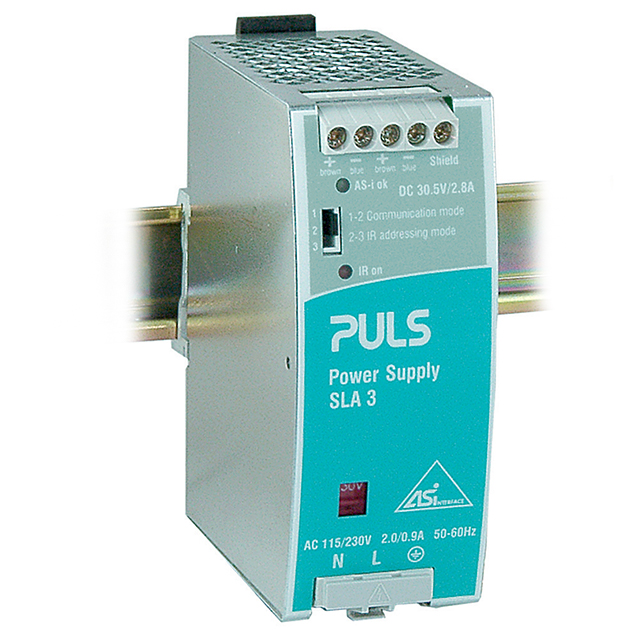

SLA3.100
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 30.6V 87W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLA3.100
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 30.6V 87W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLA3.100 |
|---|---|
| AC Voltage - Input [Max] | 132 VAC, 264 VAC |
| AC Voltage - Input [Min] | 85 VAC, 184 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | ATEX, CSA, IECEx, IEC, NEC, UL, EAC |
| Current - Output (Max) | 2.8 A |
| Efficiency | 90.5 % |
| Features | IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 87 W |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [x] | 4.02 in |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [z] | 124 mm |
| Size / Dimension [z] | 4.88 " |
| Standard Number | Class 2, Class I Div 2, 508, 60950-1 |
| Voltage - Output 1 | 30.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 580.50 | |
Description
General part information
SLA3 Series
AC/DC DIN RAIL SUPPLY 30.6V 87W
