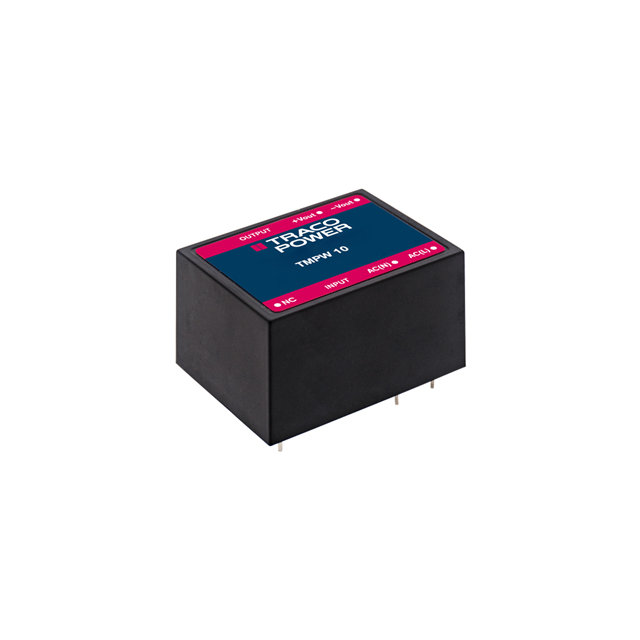

TMPW 10-112

Active

Traco Power

DIP-5 AC-DC POWER MODULES ROHS

Search across all available documentation for this part.

Active

Traco Power

DIP-5 AC-DC POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	TMPW 10-112

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max) [Max]	833 mA
Efficiency	85 %
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	5-DIP Module
Power (Watts)	10 W
Size / Dimension	27.5 mm, 37 mm, 20 mm
Size / Dimension [x]	1.46 in
Size / Dimension [y]	1.08 in
Size / Dimension [z]	0.79 in
Type	Enclosed
Voltage - Input [Max]	305 VAC, 250 VDC
Voltage - Input [Min]	90 VAC, 100 V
Voltage - Output 1	12 V

Part	Number of Outputs	Mounting Type	Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Voltage - Output 1	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Applications	Power (Watts)	Efficiency	Standard Number	Package / Case	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]
Traco Power TMPW 10-115-J	1	Chassis Mount	Enclosed	250 VDC 305 VAC	90 VAC 100 V	4000 V	15 V	CB cURus	0.91 "	1.7 "	43.2 mm	55.1 mm	23.1 mm	2.17 "	667 mA	Household Appliances ITE (Commercial)	10 W	86 %	60335-1 62368-1
Traco Power TMPW 10-112	1	Through Hole	Enclosed	250 VDC 305 VAC	90 VAC 100 V		12 V	CB cURus								Household Appliances ITE (Commercial)	10 W	85 %		5-DIP Module	833 mA	1.08 in	0.79 in	20 mm 27.5 mm 37 mm	1.46 in
Traco Power TMPW 10-124-J	1	Chassis Mount	Enclosed	250 VDC 305 VAC	90 VAC 100 V	4000 V	24 V	CB cURus	0.91 "	1.7 "	43.2 mm	55.1 mm	23.1 mm	2.17 "	417 mA	Household Appliances ITE (Commercial)	10 W	86 %	60335-1 62368-1
Traco Power TMPW 10-115	1	Through Hole	Enclosed	250 VDC 305 VAC	90 VAC 100 V		15 V	CB cURus								Household Appliances ITE (Commercial)	10 W	86 %		5-DIP Module	667 mA	1.08 in	0.79 in	20 mm 27.5 mm 37 mm	1.46 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 833mA 90 ~ 305 VAC, 100 ~ 250 VDC Input
