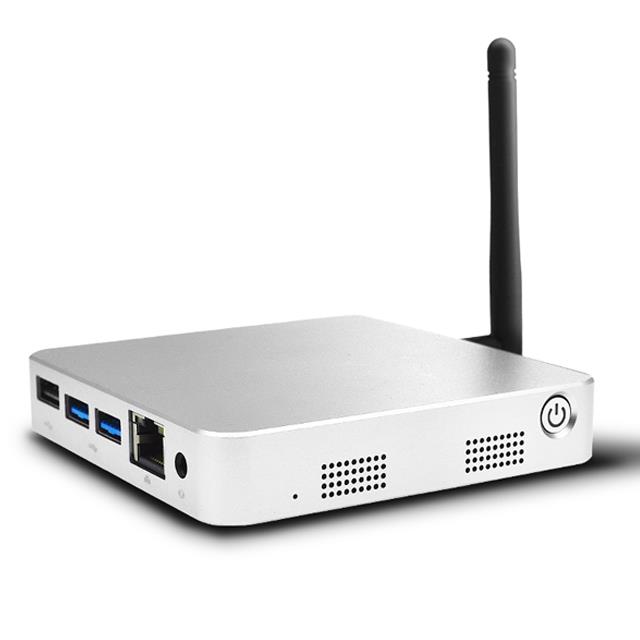

ED-CM4MED-1410-CP
ActiveEDATEC
SBC 1.5GHZ 4 CORE 4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ED-CM4MED-1410-CP
ActiveEDATEC
SBC 1.5GHZ 4 CORE 4GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ED-CM4MED-1410-CP |
|---|---|
| Core Processor | Broadcom BCM2711 Arm Cortex-A72 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | Mini PCIe |
| Form Factor | Desktop |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| RAM Capacity/Installed | 4 GB |
| Size / Dimension [x] | 3.937 in |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [y] | 3.937 in |
| Size / Dimension [y] | 100 mm |
| Speed | 1.5 GHz |
| Storage Interface | eMMC, SSD |
| USB | USB 3.0 Type A (2), USB 2.0 (1) |
| Video Outputs | HDMI, micro-HDMI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 191.25 | |
Description
General part information
ED-CM4MED-1410 Series
Single Board Computer 1.5GHz 4 Core 4GB RAM Broadcom BCM2711 ARM Cortex-A72
