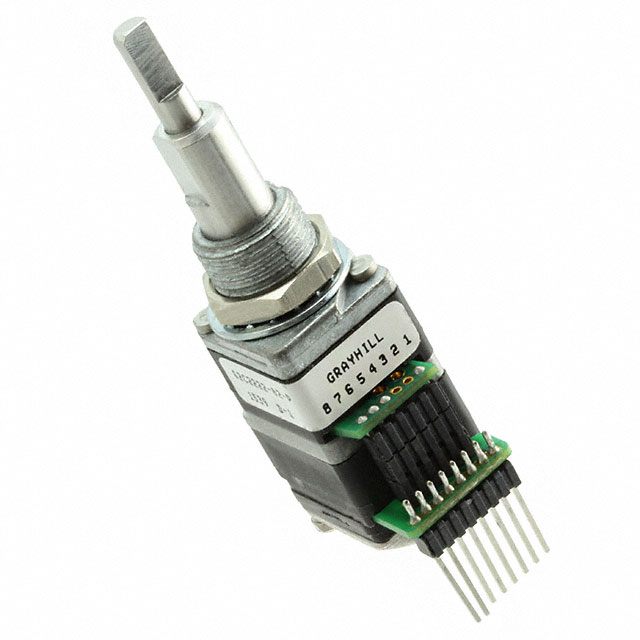

62C2222-02-P

Active

Grayhill Inc.

OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.014N.M STRAIGHT DIGITAL SQUARE WAVE THROUGH HOLE PC PIN 4CPR

Search across all available documentation for this part.

Active

Grayhill Inc.

OPTICAL ENCODER ROTARY INCREMENTAL FLAT 0.014N.M STRAIGHT DIGITAL SQUARE WAVE THROUGH HOLE PC PIN 4CPR

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Rotational Life (Cycles Min)	Encoder Type	Orientation	Pulses per Revolution	Output Type	Termination Style	Mounting Type
Grayhill Inc. 62C2222-02-020S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads
Grayhill Inc. 62C2222-01-120S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads
Grayhill Inc. 62C2222-01-035S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads
Grayhill Inc. 62C2222-02-P	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	PC Pin	Panel PCB Through Hole
Grayhill Inc. 62C2222-02-160S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads
Grayhill Inc. 62C2222-01-080S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads
Grayhill Inc. 62C2222-01-025C	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable with Connector
Grayhill Inc. 62C2222-01-050C	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable with Connector
Grayhill Inc. 62C2222-02-080S	Concentric	1M	Optical	Vertical	16	Quadrature (Incremental)	Cable Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Optical 16 Quadrature (Incremental) Vertical
