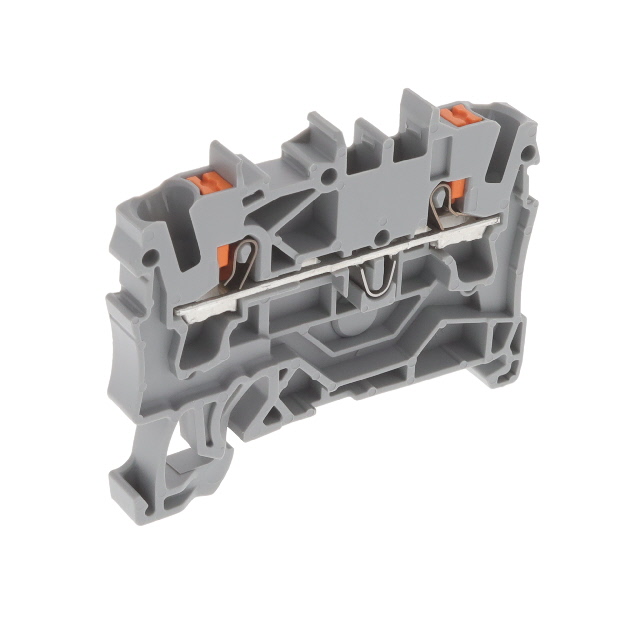

2202-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2202-1201

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 2 POSITIONS, 22 AWG, 12 AWG, 2.5 MM², CLAMP, 24 A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2202-1201

Color	Gray
Current - IEC	32 A
Current - UL	20 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	12 mm
Stripping Length [Min]	10 mm
Terminal - Width [y]	5.2 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	18 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.75 mm²

2202 Series

Part	Current - UL	Number of Levels	Color	Termination Style	Voltage - UL	Type	Number of Positions	Terminal - Width [y]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Material - Insulation	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Stripping Length [Min]	Stripping Length [Max]	Current - IEC	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
WAGO Corporation 2202-1201	20 A	1	Gray	Push In Spring	600 V	Feed Through	2	5.2 mm	12 AWG	18 AWG	800 V	Polyamide (PA66) Nylon 6/6	0.75 mm²	4 mm²	10 mm	12 mm	32 A
WAGO Corporation 2202-1407		1	Green Yellow	Push In Spring		Ground Earth	4	5.2 mm	12 AWG	18 AWG		Polyamide (PA66) Nylon 6/6			10 mm	12 mm		4 mm˛	0.75 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.25
		10	$ 2.46
		25	$ 2.28
		50	$ 2.05
		100	$ 2.00
		250	$ 1.75
		500	$ 1.60
		1000	$ 1.45
		5000	$ 1.27
Newark	Each	1	$ 2.76
		25	$ 2.59
		100	$ 2.44
		250	$ 2.30
		500	$ 2.13

Description

General part information

2202 Series

2-conductor through terminal block with push-button. Certified by UL 60079, IEC 60079-0, CNCA-C23-01, TP TC 012/2011, IEC 60079, EN 60947, C22.2, UL 1059, IEC 60947. It has rated impulse voltage (III/3) 8kV/current 24A(IEC/EN 60947-7-1), rated voltage UL (Use Group B) 600V/current UL (Use Group B) 20A, rated voltage CSA (Use Group B) 600V/ current CSA (Use Group B) 20A.
