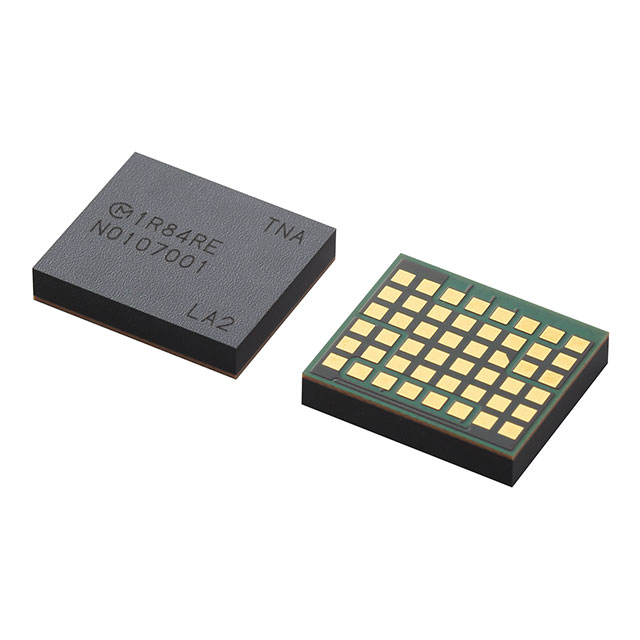

MYTNC1R84RELA2RA

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 4A OUT, 1MHZ, LGA-48

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 6 TO 14.4V IN, 0.7 TO 1.8V OUT, 4A OUT, 1MHZ, LGA-48

Technical Specifications

Parameters and characteristics for this part

Specification	MYTNC1R84RELA2RA

Applications	ITE (Commercial)
Current - Output (Max) [Max]	4 A
Efficiency	90.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	10.5 mm
Size / Dimension [x]	0.41 "
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	0.08 in
Size / Dimension [z]	2.1 mm
Supplier Device Package	48-LGA (10.5x9)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14.4 V
Voltage - Input (Min) [Min]	6 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.7 V

General Purpose Relays RELAY

Part	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]
Murata Power Solutions Inc. MYTNC1R86RELA2RAD	Non-Isolated PoL Module	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	90 %	1	ITE (Commercial)	-40 °C	105 ░C	Surface Mount	0.7 V	1.8 V	48-LGA (10.5x9)	14.4 V	6 V	Adjustable Output Remote On/Off Remote Sense	6 A
Murata Power Solutions Inc. MYTNC1R84RELA2RA	Non-Isolated PoL Module	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	90.5 %	1	ITE (Commercial)	-40 °C	105 ░C	Surface Mount	0.7 V	1.8 V	48-LGA (10.5x9)	14.4 V	6 V	Adjustable Output Remote On/Off Remote Sense	4 A
Murata Power Solutions Inc. MYTNC1R84RELA2RAD	Non-Isolated PoL Module	0.35 "	0.08 in	10.5 mm	2.1 mm	0.41 "	9 mm	90.5 %	1	ITE (Commercial)	-40 °C	105 ░C	Surface Mount	0.7 V	1.8 V	48-LGA (10.5x9)	14.4 V	6 V	Adjustable Output Remote On/Off Remote Sense	4 A
