10028916-5544P00LF
ActiveAmphenol ICC (FCI)

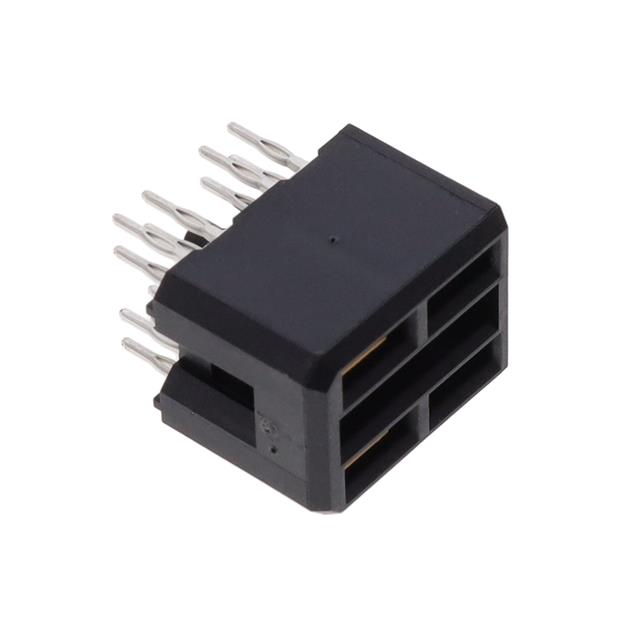

CONN RCPT BLADE PWR 4POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
10028916-5544P00LF
ActiveAmphenol ICC (FCI)
CONN RCPT BLADE PWR 4POS PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10028916-5544P00LF |
|---|---|
| Color | Black |
| Connector Style | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets |
| Connector Usage | Daughtercard |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical | 4 Power |
| Current Rating (Amps) | 80 A |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Columns | 2 |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Termination | Press-Fit |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.44 | |
| 10 | $ 12.64 | |||
| 25 | $ 11.43 | |||
| 60 | $ 10.41 | |||
| 120 | $ 9.69 | |||
| 300 | $ 8.84 | |||
| 540 | $ 8.35 | |||
| 1020 | $ 7.87 | |||
Description
General part information
10028916 Series
4 Connector Receptacle, Female Blade Sockets Through Hole Black Blade Power
