Technical Specifications
Parameters and characteristics for this part
| Specification | DMT070WVHLCMU-3A |
|---|---|
| Background Color | Black |
| Backlight | LED - White |
| Controller Type | ILI2132 |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color LCD |
| Dot Pitch [x] | 0.19 mm |
| Dot Pitch [y] | 0.19 mm |
| Dot Pixels | WVGA |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Dot Size [x] | 0.06 mm |
| Dot Size [y] | 0.19 mm |
| Graphics Color | Green, Red, Blue |
| Interface | 8-Bit, LVDS, USB |
| Viewing Area [x] | 153.6 mm |
| Viewing Area [y] | 92.64 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 154.64 | |
| 101 | $ 150.22 | |||
| 501 | $ 145.80 | |||
| 1001 | $ 141.38 | |||
Description
General part information

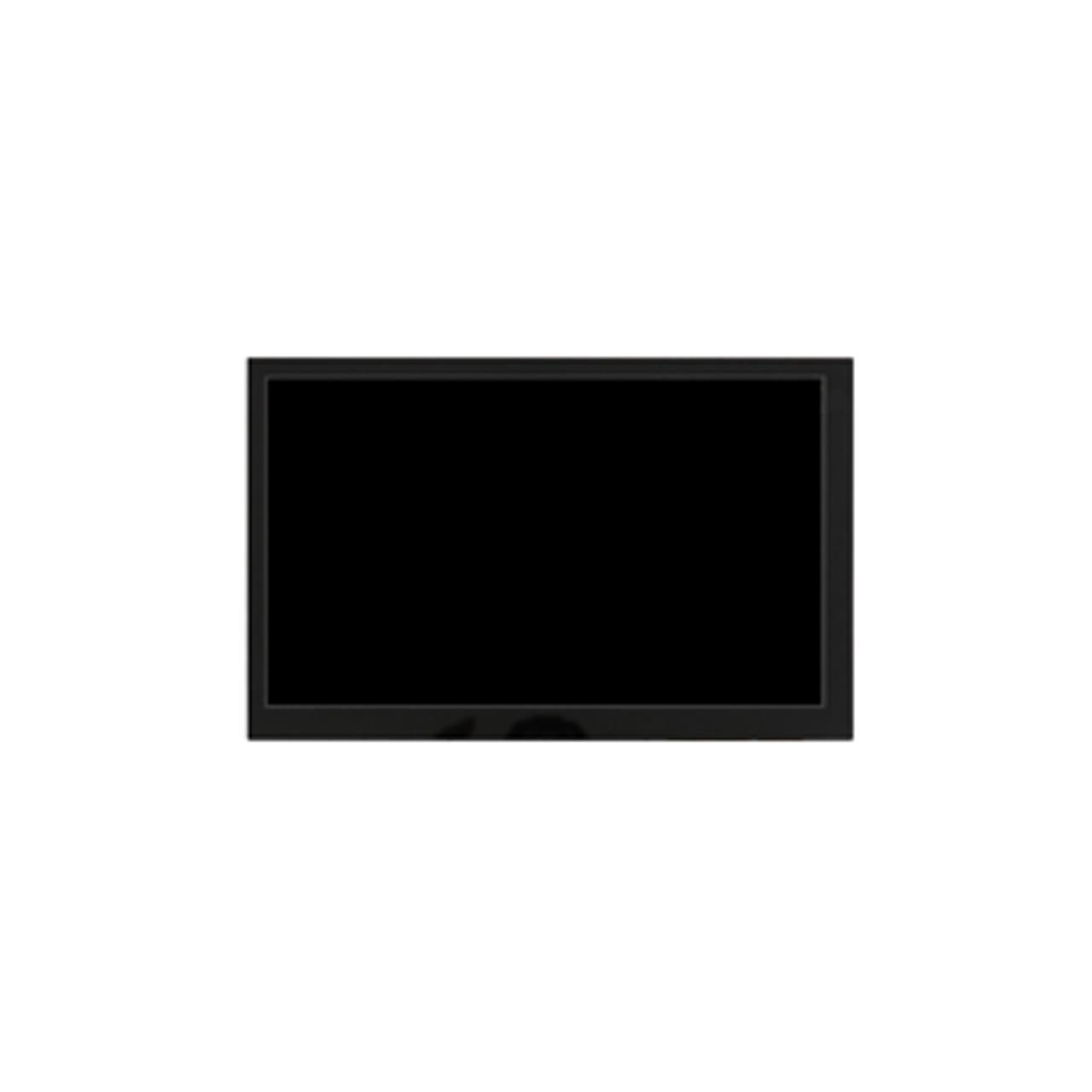

DMT070WVHLCMU-3A
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LCD 8-Bit, LVDS, USB 7" (177.80mm) 800 x 480 (WVGA)
