L712RAS

Active

Switchcraft Inc.

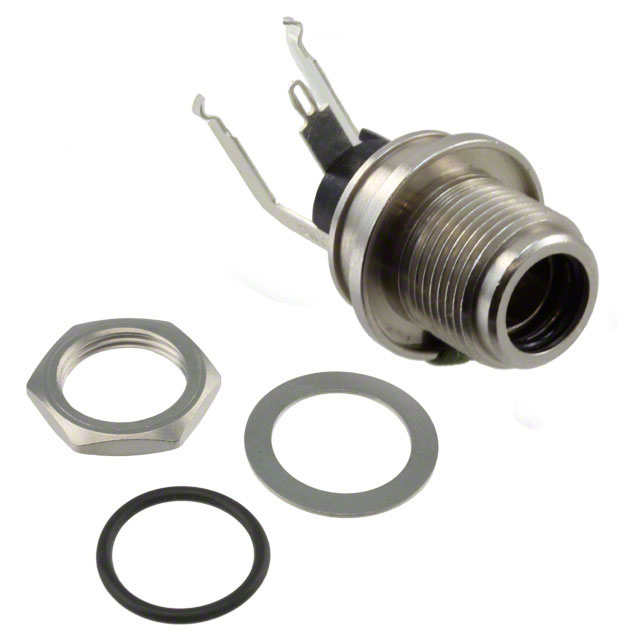

DC POWER CONNECTORS PWR JACK SEALED IP68 2.5MM R/A PC MT LCKG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L712RAS

Active

Switchcraft Inc.

DC POWER CONNECTORS PWR JACK SEALED IP68 2.5MM R/A PC MT LCKG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L712RAS

Actual Diameter [diameter]	2.5 mm
Actual Diameter [diameter]	0.098 in
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Ingress Protection	IP68
Internal Switch(s)	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder
Thread Size	7/16"-32
Voltage - Rated	30 V

Sealed Power Jacks Series

DC Power Connectors Pwr Jack Sealed IP68 2.5mm R/A PC Mt lckg

Part	Body Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Body Color	Gender	Shielding	Internal Switch(s)	Features	Contact Material	Mounting Feature	Contact Material - Plating [custom]	Connector Type	Includes	Number of Positions/Contacts	Voltage - Rated	Housing Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Thread Size	Ingress Protection	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Insulation Color
Switchcraft Inc. L712AS	Copper Alloy	2.5 mm	0.098 in	Solder Eyelet(s)	Black Silver	Male	Unshielded	Normally Closed Single Switch	Mounting Hardware Thread Lock	Copper Alloy	Bulkhead - Front Side Nut	Silver	Jack	1 Connector 1 Nut 1 O-Ring 1 Washer	2 Conductors 3 Conductors	30 V	Thermoplastic	2.5 mm 5.5 mm	0.098 " 0.217 "	7/16"-32	IP68	5 A
Switchcraft Inc. L712RAS	Copper Alloy	2.5 mm	0.098 in	Solder	Black Silver	Male	Unshielded	Normally Closed Single Switch	Mounting Hardware Thread Lock	Copper Alloy	Bulkhead - Front Side Nut	Silver	Jack	1 Connector 1 Nut 1 O-Ring 1 Washer	2 Conductors 3 Conductors	30 V	Thermoplastic	2.5 mm 5.5 mm	0.098 " 0.217 "	7/16"-32	IP68	5 A	Panel Mount Right Angle Through Hole
Switchcraft Inc. L712AH	Copper Alloy	2.5 mm	0.098 in	Solder Eyelet(s)	Silver White	Male	Unshielded	Single Switch		Copper Alloy		Silver	Jack	Connector Nut Washer	2 Conductors 3 Conductors		Thermoplastic	2.5 mm ID	0.098 "	5/16"-32			Through Hole
Switchcraft Inc. L712AC	Copper Alloy	2.5 mm	0.098 in	Solder Eyelet(s)	Black Silver	Male	Unshielded			Copper Alloy			Jack		2 Conductors 3 Conductors	24 VDC	Thermoplastic	2.5 mm ID	0.098 "			5 A	Free Hanging (In-Line)	-40 °C	105 ░C	Tin	Black
