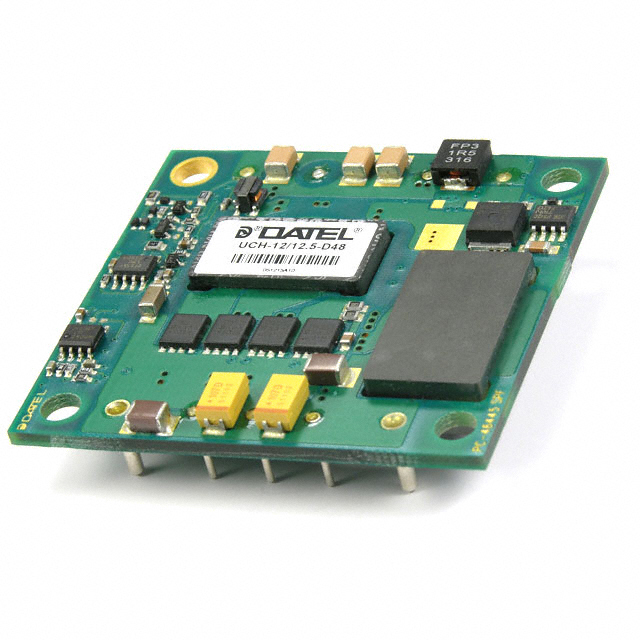

UCH-12/12.5-D48N-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCH-12/12.5-D48N-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 12V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCH-12/12.5-D48N-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 12.5 A |
| Efficiency | 92.6 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.3 " |
| Size / Dimension [y] | 58.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UCH-12 Series
Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 75V Input
