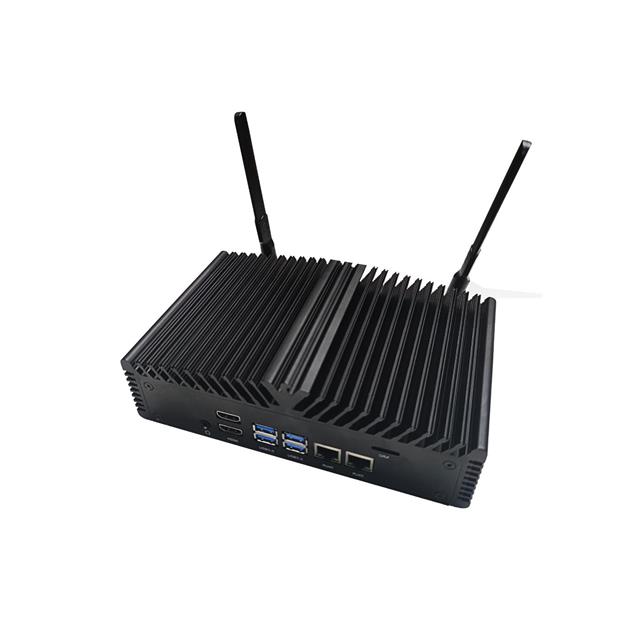

114110148

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Seeed Technology Co., Ltd

SBC 6 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	114110148

Cooling Type	Fan
Core Processor	NVIDIA Carmel ARMv8.2
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Expansion Site/Bus	UART, RS-485, microSD, I2S, Wi-Fi/Bluetooth, RS-232, I2C, SPI, Ethernet, RTC, CAN, HDMI, USB, RJ-45, Audio
Form Factor	Small Size
Number of Cores	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Power (Watts)	90 W
RAM Capacity/Installed [custom]	8 GB
RAM Capacity/Installed [custom]	0 GB
RS-232 (422, 485)	2
Size / Dimension [x]	8.071 in
Size / Dimension [x]	205 mm
Size / Dimension [y]	5.118 "
Size / Dimension [y]	130 mm
Size / Dimension [z]	2.559 "
Size / Dimension [z]	65 mm
Storage Interface	M.2, NVME, SSD, microSD
USB	USB Micro (1), USB 2.0 Type C (1), USB 3.0 Type A (4)
Video Outputs	DP, HDMI
Watchdog Timer	False

Part	Core Processor	USB	Expansion Site/Bus	Power (Watts)	Number of Cores	Cooling Type	Form Factor	Storage Interface	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	RS-232 (422, 485)	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Video Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Ethernet [custom]	Ethernet	RAM Capacity/Installed	RAM Capacity/Installed
Seeed Technology Co., Ltd 114110148	NVIDIA Carmel ARMv8.2	USB 2.0 Type C (1) USB 3.0 Type A (4) USB Micro (1)	Audio CAN Ethernet HDMI I2C I2S microSD RJ-45 RS-232 RS-485 RTC SPI UART USB Wi-Fi/Bluetooth	90 W	6	Fan	Small Size	M.2 microSD NVME SSD	8 GB	0 GB	2	10 Mbps 100 Mbps 1000 Mbps	-25 °C	80 C	DP HDMI	2.559 "	5.118 "	130 mm	65 mm	8.071 in	205 mm
Seeed Technology Co., Ltd 114110107	Raspberry Pi CM4	micro USB 2.0 (1) USB 2.0 (4)	M.2	100 W 500 W	6	Fan	Mini-ITX	M.2							HDMI		6.69 in	170 mm		6.69 "	170 mm	2	RJ45	-	0 GB
Seeed Technology Co., Ltd 114110147	NVIDIA Carmel ARMv8.2	USB 3.0 (4) USB Micro (1)	Audio CAN Ethernet GPIO HDMI I2C I2S microSD RJ-45 RS-232 RTC SPI UART USB Wi-Fi/Bluetooth	90 W	6	Fan + Heat Sink	Small Size	M.2 microSD NVME SSD	8 GB	0 GB	1	10 Mbps 100 Mbps 1000 Mbps	-20 C	80 C	CSI DP HDMI	1.732 in	2.323 in	59 mm	44 mm	3.937 in	100 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 999.01

General part information

Single Board Computer 6 Core 8GB/0GB RAM NVIDIA Carmel ARMv8.2
