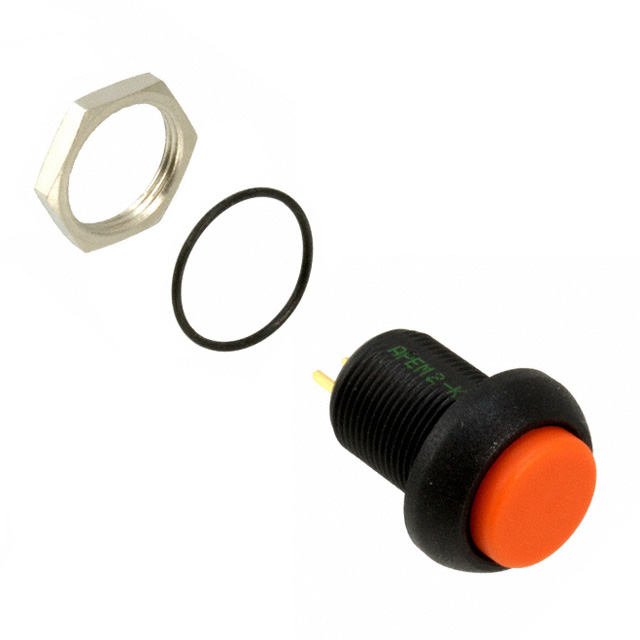

IMP7P492

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

PUSHBUTTON SWITCH FD DBLE ICON ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	IMP7P492

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Orange
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	28 V

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Ingress Protection	Type	Electrical Life	Current Rating (Amps)	Mounting Type	Features	Actuator Type	Voltage Rating - DC	Circuit	Actuator Marking	Mechanical Life	Panel Cutout Dimensions [diameter]	Termination Style
APEM IMP7P452104	On-Mom	85 °C	-40 °C	Yellow	IP67 - Dust Tight Waterproof	Standard	25000 Steps	3 A	Panel Mount Front	Epoxy Sealed Terminals	Button Round	28 V	SPDT	No Marking	1000000 Cycles	13.6 mm	PC Pin
APEM IMP7P492	On-Mom	85 °C	-40 °C	Orange	IP67 - Dust Tight Waterproof	Standard	25000 Steps	3 A	Panel Mount Front	Epoxy Sealed Terminals	Button Round	28 V	SPDT	No Marking	1000000 Cycles	13.6 mm	PC Pin
APEM IMP7P412	On-Mom	85 °C	-40 °C	Blue	IP67 - Dust Tight Waterproof	Standard	25000 Steps	3 A	Panel Mount Front	Epoxy Sealed Terminals	Button Round	28 V	SPDT	No Marking	1000000 Cycles	13.6 mm	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Front
