09160423101

Active

HARTING Technology Group

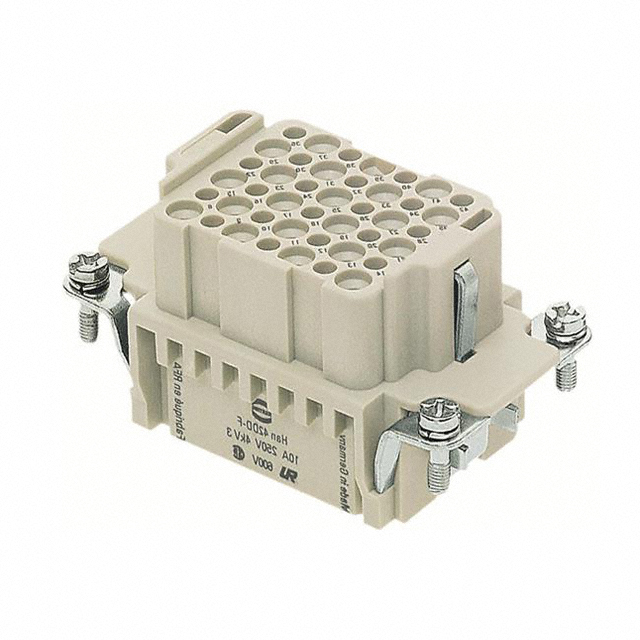

HEAVY DUTY CONNECTOR, HEAVY-DUTY HAN SERIES, INSERT, 42+PE CONTACTS, 10B, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

09160423101

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HEAVY-DUTY HAN SERIES, INSERT, 42+PE CONTACTS, 10B, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09160423101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	42+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Crimp
Voltage Rating	600 V

09160423 Series

Part	Gender	Voltage Rating	Connector Type	Color	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Size	Number of Positions	Housing Material	Contact Type	Material Flammability Rating
HARTING Technology Group 09160423101	Female	600 V	Insert without Contacts	Gray	Crimp	125 °C	-40 °C	10 A	10B	42+Ground	Polycarbonate (PC)	Han® D	UL94 V-0
HARTING Technology Group 09160423105
HARTING Technology Group 09160423001	Male	600 V	Insert without Contacts	Gray	Crimp	125 °C	-40 °C	10 A	10B	42+Ground	Polycarbonate (PC)	Han® D	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.00
		10	$ 19.96
		25	$ 17.94
		50	$ 17.50

Description

General part information

09160423 Series

The 09160423101 is a 42-position Han DD Female Insert Crimp Module with PCB adapter for use with 10B series connectors. 0.14 to 2.5mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) color.
