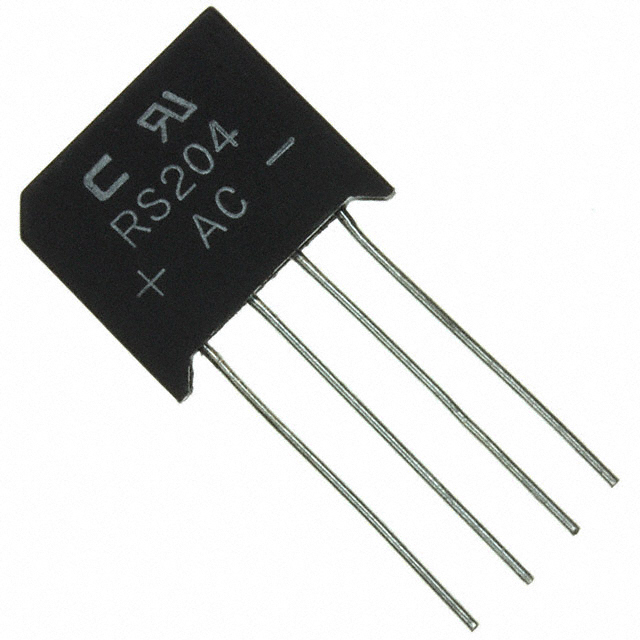

RS204-G

Obsolete

Comchip Technology

BRIDGE RECT 1PHASE 400V 2A RS-2

Search across all available documentation for this part.

Obsolete

Comchip Technology

BRIDGE RECT 1PHASE 400V 2A RS-2

Technical Specifications

Parameters and characteristics for this part

Specification	RS204-G

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, RS-2
Supplier Device Package	RS-2
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

Part	Voltage - Peak Reverse (Max) [Max]	Diode Type	Technology	Package / Case	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Average Rectified (Io)	Mounting Type	Voltage - Forward (Vf) (Max) @ If
Comchip Technology RS204-G	400 V	Single Phase	Standard	4-SIP RS-2	10 µA	125 ¯C	-55 °C	RS-2	2 A	Through Hole	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole RS-2
