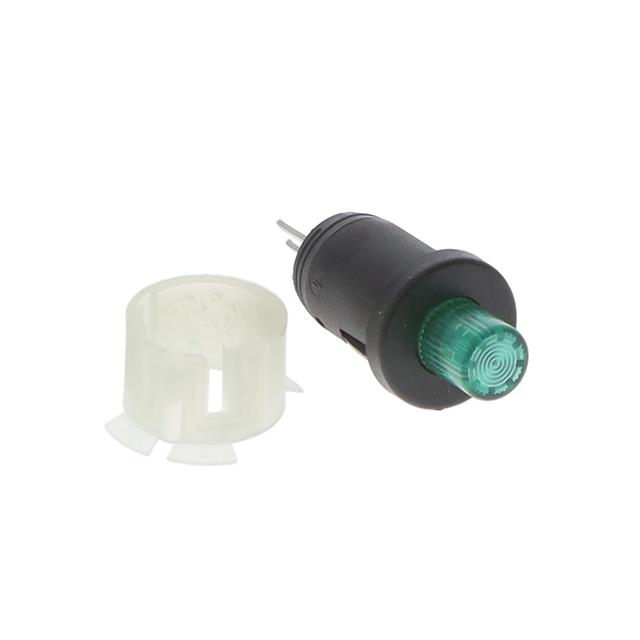

0041.8846.5127

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Technical Specifications

Parameters and characteristics for this part

Specification	0041.8846.5127

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP40
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	60 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - AC	Voltage Rating - DC	Electrical Life	Illumination Voltage (Nominal)	Switch Function	Mechanical Life	Termination Style	Type	Illumination Type, Color	Color - Actuator/Cap	Circuit	Actuator Marking	Actuator Type	Panel Cutout Dimensions [diameter]	Mounting Type	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
SCHURTER Inc. 0041.8846.5127	60 V	50 VDC	10000 Cycles	2 VDC	Off-Mom	10000 Steps	Solder Lug	Illuminated Standard	Green LED	Green	SPST-NO	No Marking	Button Round	8 mm	Panel Mount Front	IP40	200 mA	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
