MH14-38RK

Active

3M (TC)

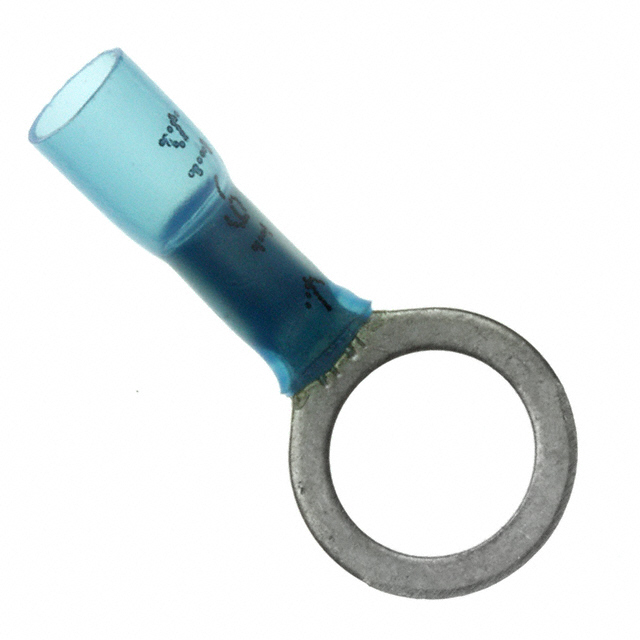

RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 27.94MM TIN CASE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MH18-6R-MH10-38R Datasheet

MH14-38RK

Active

3M (TC)

RING TONGUE TERMINAL 14-16AWG ETP COPPER BLUE 27.94MM TIN CASE

Deep-Dive with AI

DocumentsDatasheet MH18-6R-MH10-38R Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MH14-38RK

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated with Heat Shrink
Length - Overall [x]	27.94 mm
Length - Overall [x]	1.1 in
Material - Insulation [custom]	Polyolefin
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	3/8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.03 in
Thickness	0.76 mm
Width - Outer Edges [y]	14.22 mm
Width - Outer Edges [y]	0.56 in

MH14 Series

Part	Insulation	Stud/Tab Size	Features	Mounting Type	Length - Overall	Length - Overall [x]	Color	Termination	Contact Finish	Contact Material	Terminal Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation [custom]	Length - Termination	Length - Termination	Width - Outer Edges	Width - Outer Edges [y]	Stud/Tab Size	Thickness	Thickness	Length - Termination [custom]	Length - Termination [custom]	Width - Outer Edges [y]	Length - Overall [x]
3M (TC) MH14-8FLX-BOTTLE	Insulated with Heat Shrink	8 Stud	Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin	14.73 mm	0.58 in
3M (TC) MH14-6R/LX-BOTTLE	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Circular			Polyolefin			7.87 mm	0.31 in	6 Stud	0.03 in	0.76 mm
3M (TC) MH14-10FLX-BOTTLE	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin				0.32 in	10 Stud			16.26 mm	0.64 in	8.13 mm
3M (TC) MH14-10FLK	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin				0.32 in	10 Stud			16.26 mm	0.64 in	8.13 mm
3M (TC) MH14-6FLX-BOTTLE	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin				0.25 "	6 Stud			16.26 mm	0.64 in	6.35 mm
3M (TC) MH14-6FLK	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin				0.25 "	6 Stud			16.26 mm	0.64 in	6.35 mm
3M (TC) MH14-38RK	Insulated with Heat Shrink	3/8 Stud	Brazed Seam	Free Hanging (In-Line)		1.1 in	Blue	Crimp	Tin	Copper ETP	Circular			Polyolefin				0.56 in		0.03 in	0.76 mm			14.22 mm	27.94 mm
3M (TC) MH14-8FLK	Insulated with Heat Shrink	8 Stud	Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Snap Spring	0.12 in	3.05 mm	Polyolefin	14.73 mm	0.58 in
3M (TC) MH14-8R/LK	Insulated with Heat Shrink	8 Stud	Brazed Seam	Free Hanging (In-Line)	25.4 mm	1 in	Blue	Crimp	Tin	Copper ETP	Circular			Polyolefin			7.87 mm	0.31 in		0.03 in	0.76 mm
3M (TC) MH14-516R/SK	Insulated with Heat Shrink		Brazed Seam	Free Hanging (In-Line)		1.1 in	Blue	Crimp	Tin	Copper ETP	Circular			Polyolefin				0.47 in	0.3125 Stud	0.03 in	0.76 mm			11.94 mm	27.94 mm
