RA4-1A-DC-2-AL

Active

Switch Components

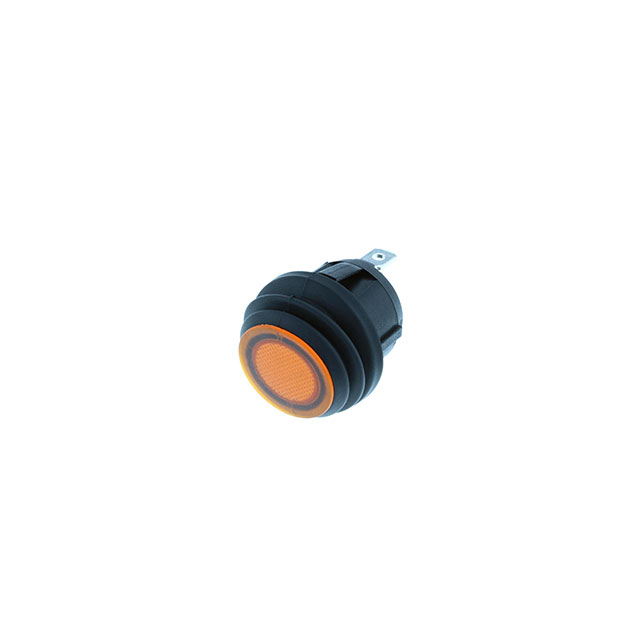

SWITCH ROCKER SPST 20A 14V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RA4-1A-DC-2-AL

Active

Switch Components

SWITCH ROCKER SPST 20A 14V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RA4-1A-DC-2-AL

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Approval Agency	cURus, ENEC
Circuit	SPST
Color - Actuator/Cap	Amber
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	14 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - DC	14 V

RA1-1A Series

Part	Circuit	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Actuator Type	Termination Style	Mechanical Life	Color - Actuator/Cap	Current Rating (Amps)	Electrical Life	Mounting Type	Approval Agency	Panel Cutout Dimensions [diameter]	Actuator Marking	Illumination Type, Color	Illumination Voltage (Nominal)	Ingress Protection
Switch Components RA1-2F-DC-2-B-5	DPDT	125 V	-25 °C	85 °C	28 V	On-Off-On	Round	Quick Connect - 0.187" (4.7mm)	10000 Steps	Black	10 A 16 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	- O =
Switch Components RA4-1A-DC-2-RL	SPST		-25 °C	85 °C	14 V	On-Off	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10000 Steps	Red	20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking	LED Red	14 VDC	IP65 - Dust Tight Water Resistant
Switch Components RA1-1A-AC-2-B-2	SPST		-25 °C	85 °C		On-Off	Round	Quick Connect - 0.187" (4.7mm)		Black	10 A		Panel Mount Snap-In	cURus ENEC	20.2 mm	ON OFF Vertical			IP40
Switch Components RA4-1A-DC-2-AL	SPST		-25 °C	85 °C	14 V	On-Off	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10000 Steps	Amber	20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking	Amber LED	14 VDC	IP65 - Dust Tight Water Resistant
Switch Components RA1-1A-DC-2-B	SPST	125 V	-25 °C	85 °C	14 V	On-Off	Round	Quick Connect - 0.187" (4.7mm)	10000 Steps	Black	16 A 20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking
Switch Components RA4-1A-DC-2-GL	SPST		-25 °C	85 °C	14 V	On-Off	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10000 Steps	Green	20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking	Green LED	14 VDC	IP65 - Dust Tight Water Resistant
Switch Components RA1-2F-DC-2-B	DPDT	125 V	-25 °C	85 °C	28 V	On-Off-On	Round	Quick Connect - 0.187" (4.7mm)	10000 Steps	Black	10 A 16 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking
Switch Components RA1-1A-DC-2-AL	SPST		-25 °C	85 °C	14 V	On-Off	Round - Illuminated	Quick Connect - 0.187" (4.7mm)	10000 Steps	Amber	20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking	Amber LED	14 VDC
Switch Components RA1-1A-AC-2-B	SPST		-25 °C	85 °C		On-Off	Round	Quick Connect - 0.187" (4.7mm)		Black	10 A		Panel Mount Snap-In	cURus ENEC	20.2 mm	No Marking			IP40
Switch Components RA1-1A-DC-2-B-3	SPST	125 V	-25 °C	85 °C	14 V	On-Off	Round	Quick Connect - 0.187" (4.7mm)	10000 Steps	Black	16 A 20 A	6000 Cycles	Panel Mount Snap-In	cURus ENEC	20.2 mm	Dot
