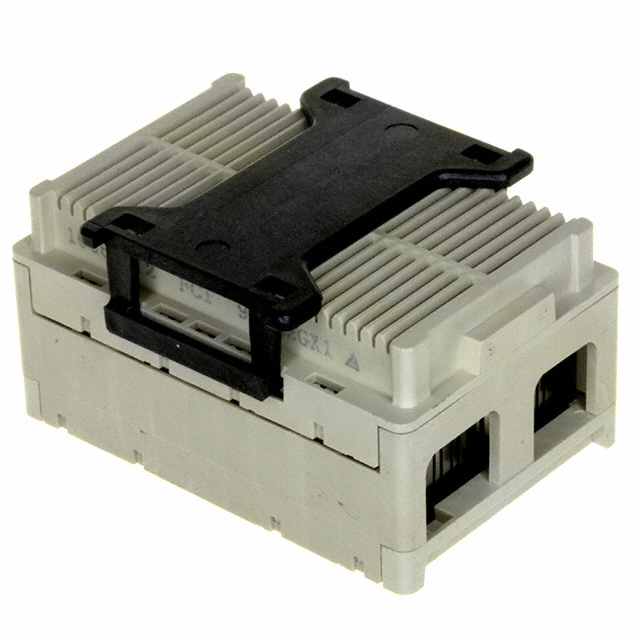

10060912-001LF

Obsolete

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 200POS SMD

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN DIFF ARRAY RCPT 200POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10060912-001LF

Connector Type	Differential Pair Array, Female
Contact Finish	GXT™, Gold or Gold
Height Above Board [z]	14.51 mm
Height Above Board [z]	0.571 "
Mated Stacking Heights	27mm, 30mm, 35mm, 25mm, 40mm, 28mm
Mounting Type	Surface Mount
Number of Positions	200
Number of Positions [custom]	100
Number of Rows [custom]	18
Pitch [x]	1.3 mm
Pitch [x]	0.051 in

Part	Number of Positions	Number of Positions [custom]	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows [custom]
Amphenol ICC (FCI) 10060912-001LF	200	100	Surface Mount	25mm 27mm 28mm 30mm 35mm 40mm	Differential Pair Array Female	14.51 mm	0.571 "	1.3 mm	0.051 in	Gold or Gold GXT™	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

200 Signal (100 Pair) Position Connector Differential Pair Array, Female Surface Mount Gold or Gold, GXT™
