TR9CZ947T00-IMR6B

Active

GlobTek, Inc.

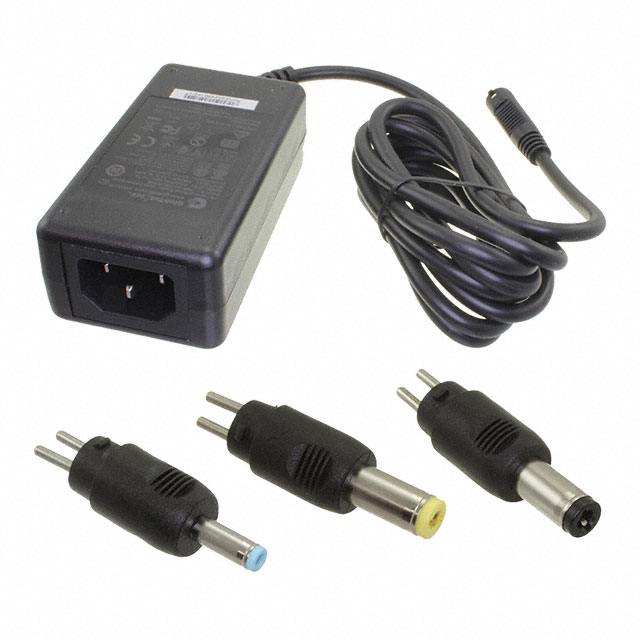

AC/DC DESKTOP ADAPTER 19V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 19V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CZ947T00-IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	940 mA
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	3.43 in
Size / Dimension [x]	87 mm
Size / Dimension [y]	1.85 "
Size / Dimension [y]	47 mm
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output	Cord Length	Cord Length	Output Connector	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Region Utilized	Power (Watts)	Input Type	Approval Agency	Input Connector	Standard Number	Applications	Form	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]
GlobTek, Inc. TR9CZ947T00-IMR6B	1.85 "	32 mm	3.43 in	47 mm	87 mm	1.26 in	19 V	1.5 m	59 in	1.3mm x 3.5mm Barrel Plug Kit	90 VAC	264 VAC	Level VI	International	18 W	Cord	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	IEC 320-C14	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	940 mA	75 mW	-20 C	40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19V 18 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
