183-037-212-531

Obsolete

MH Connectors

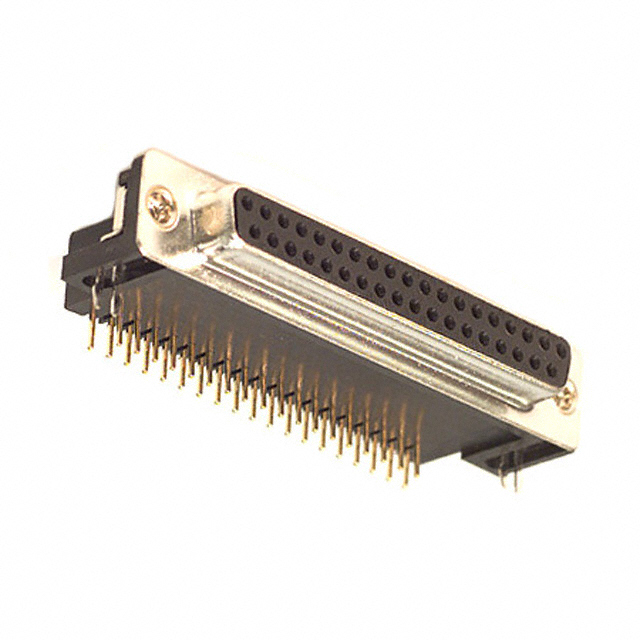

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

183-037-212-531

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	183-037-212-531

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

183-037 Series

Part	Contact Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Connector Style	Contact Finish	Features	Shell Size, Connector Layout	Dielectric Material	Flange Feature	Termination	Current Rating (Amps)	Number of Positions	Number of Rows	Color	Contact Finish Thickness	Backset Spacing	Backset Spacing	Contact Material	Shell Material, Finish
MH Connectors 183-037-212-161	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Ground Strap	4 (DC C)	Polyester Glass Filled	Housing/Shell (Unthreaded)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm
MH Connectors 183-037-113R431	Signal	Male Pins Plug	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Grounding Indents	4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (Unthreaded)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-113R451	Signal	Male Pins Plug	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Grounding Indents	4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-112-161	Signal	Male Pins Plug	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Ground Strap Grounding Indents	4 (DC C)	Polyester Glass Filled	Housing/Shell (Unthreaded)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm
MH Connectors 183-037-213R171	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Ground Strap	4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-213R451	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold		4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-212-531	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold		4 (DC C)	Polyester Glass Filled	Housing/Shell (4-40)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm
MH Connectors 183-037-213R431	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold		4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (Unthreaded)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-213R161	Signal	Receptacle Female Sockets	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Ground Strap	4 (DC C)	Polyamide (PA9T) Nylon 9T	Housing/Shell (Unthreaded)	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel
MH Connectors 183-037-113R561	Signal	Male Pins Plug	105 ░C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Gold	Board Lock Grounding Indents	4 (DC C)	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Solder	5 A	37	2	Black	Flash	0.59 "	14.99 mm	Brass	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

183-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
