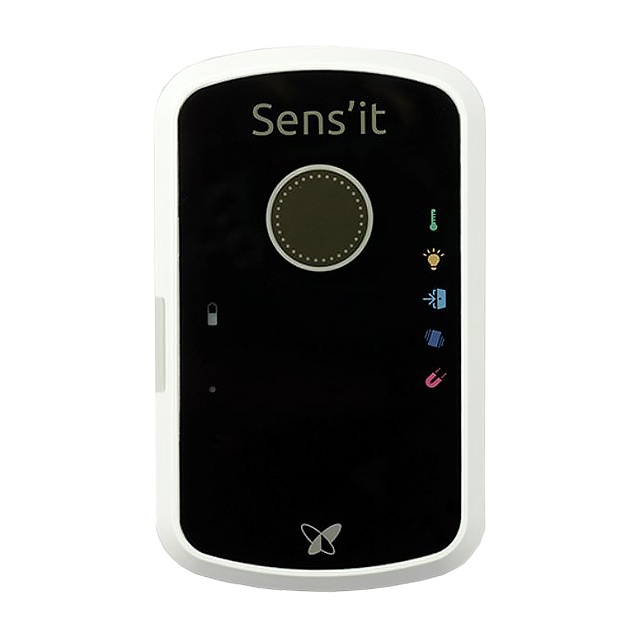

SENS'IT DISCOVERY 3.1

Active

Sigfox

SENS'IT RC1 EUROPE

Search across all available documentation for this part.

Active

Sigfox

SENS'IT RC1 EUROPE

Technical Specifications

Parameters and characteristics for this part

Specification	SENS'IT DISCOVERY 3.1

Applications	General Purpose, IoT Finished Device
Data Rate (Max)	100 bps
Features	IP54, Rechargeable Battery
Frequency [Max]	869.7 MHz
Frequency [Min]	868 MHz
Function	Sensor
Interface	USB
Modulation or Protocol	Sigfox
Power - Output	14 dBm
Sensitivity	-124 dBm

Part	Function	Interface	Power - Output	Modulation or Protocol	Sensitivity	Data Rate (Max)	Applications	Features	Frequency [Max]	Frequency [Min]
Sigfox SENS'IT DISCOVERY 3.4	Sensor	USB	22 dBm	Sigfox	-126 dBm	600 bps	General Purpose IoT Finished Device	IP54 Rechargeable Battery	925 MHz	920 MHz
Sigfox SENS'IT DISCOVERY 3.2	Sensor	USB	22 dBm	Sigfox	-126 dBm	600 bps	General Purpose IoT Finished Device	IP54 Rechargeable Battery	908 MHz	902 MHz
Sigfox SENS'IT DISCOVERY 3.3	Sensor	USB	10 dBm	Sigfox	-126 dBm	100 bps	General Purpose IoT Finished Device	IP54 Rechargeable Battery	923.2 MHz	922.2 MHz
Sigfox SENS'IT DISCOVERY 3.1	Sensor	USB	14 dBm	Sigfox	-124 dBm	100 bps	General Purpose IoT Finished Device	IP54 Rechargeable Battery	869.7 MHz	868 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	63	$ 77.23

General part information

RF Sensor 868MHz ~ 869.7MHz Sigfox USB 100bps
