LCD-S101D40TR

Active

Lumex Opto/Components Inc.

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 1 DIG 1 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

Part	Display Format [y]	Display Format [x]	Character Format	Backlight	Display Type	Character Size [x]	Character Size [y]	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Number of Characters	Viewing Area [y]	Viewing Area [x]	Display Mode	Background Color	Character Size [custom]	Character Size [custom]
Lumex Opto/Components Inc. LCD-S101D22TR	1	1	7-Segment	Without Backlight	TN - Twisted Nematic	36.7 mm	56.13 mm	2.8 mm	76.2 mm	55.88 mm	1	65.02 mm	50.8 mm	Reflective
Lumex Opto/Components Inc. LCD-S101M71TR-02	1	1		Without Backlight	TN - Twisted Nematic			2.8 mm	25.4 mm	22.86 mm	1	19.86 mm	20.3 mm	Reflective	Gray
Lumex Opto/Components Inc. LCD-S101D14TR	1	1	7-Segment	Without Backlight	TN - Twisted Nematic			2.8 mm	33 mm	50 mm	1	38.9 mm	27.9 mm	Reflective		34.54 mm	19 mm
Lumex Opto/Components Inc. LCD-S101D14TF	1	1	7-Segment	Without Backlight	TN - Twisted Nematic			2.8 mm	50 mm	33 mm	1	27.9 mm	38.9 mm	Transflective	Gray	34.54 mm	19 mm
Lumex Opto/Components Inc. LCD-S101D40TR	1	1	7-Segment	Without Backlight	TN - Twisted Nematic	101.6 mm	71.12 mm	2.8 mm	81.28 mm	122.56 mm	1	109.22 mm	76.2 mm	Reflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

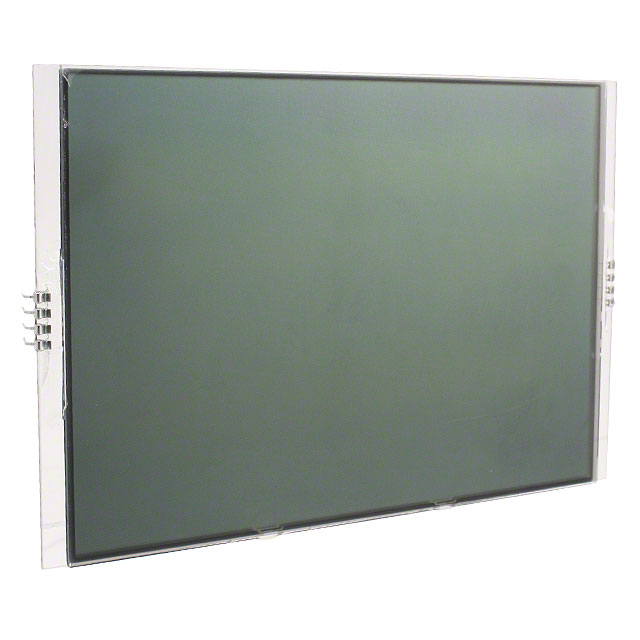

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 81.28mm x 122.56mm x 2.80mm

Technical documentation and resources

No documents available
