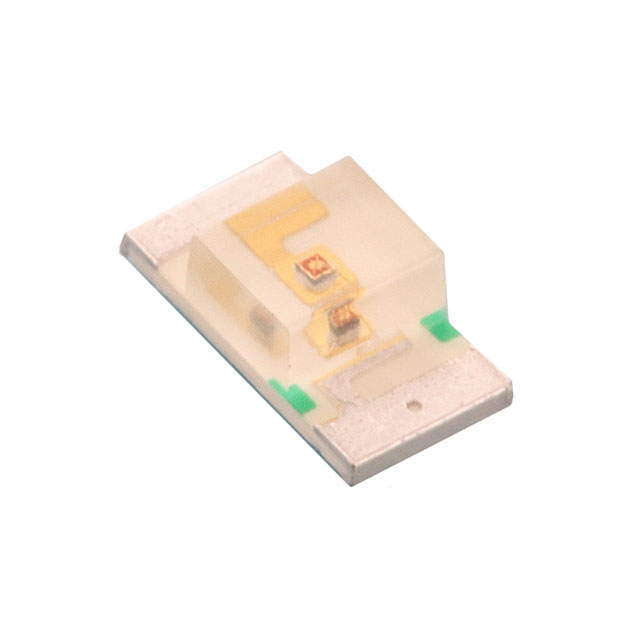

APTR3216SECK/J3-PRV

Active

Kingbright

LED RED CLEAR 1206 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTR3216SECK/J3-PRV

Active

Kingbright

LED RED CLEAR 1206 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTR3216SECK/J3-PRV

Color	Red
Current - Test	20 mA
Height (Max) [Max]	1.25 mm
Lens Color	Colorless
Lens Size [x]	1.6 mm
Lens Size [y]	1.4 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	350 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Dominant	625 nm
Wavelength - Peak [custom]	640 nm

APTR3216 Series

Part	Lens Transparency	Lens Color	Wavelength - Peak	Current - Test	Lens Style	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Height (Max) [Max] [z]	Configuration	Lens Size [y]	Lens Size [x]	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Millicandela Rating	Height (Max) [Max]	Wavelength - Peak [custom]	Power - Max [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength
Kingbright APTR3216YC	Clear	Colorless	590 nm	20 mA	Rectangle with Flat Top	Yellow	Chip LED	2.1 V	588 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	8 mcd
Kingbright APTR3216SYCK/J3-PRV	Clear	Colorless	590 nm	20 mA	Rectangle with Flat Top	Yellow	1206	2 V	590 nm			1.4 mm	1.6 mm	140 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	320 mcd	1.25 mm
Kingbright APTR3216EC	Clear	Colorless	627 nm	20 mA	Rectangle with Flat Top	Red	Chip LED	2 V	617 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	8 mcd
Kingbright APTR3216ZGC	Clear	Colorless	515 nm	20 mA	Rectangle with Flat Top	Green	Chip LED	3.3 V	525 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	400 mcd
Kingbright APTR3216QBC/D	Clear	Colorless	460 nm	20 mA	Rectangle with Flat Top	Blue	Chip LED	3.3 V	465 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	100 mcd
Kingbright APTR3216-VFX				20 mA	Rectangle with Flat Top	Violet	1206	3.3 V				1.4 mm	1.6 mm	160 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	100 mcd	1.25 mm
Kingbright APTR3216SECK/J3-PRV	Clear	Colorless		20 mA	Rectangle with Flat Top	Red	1206	2.2 V	625 nm			1.4 mm	1.6 mm	140 °	1.6 mm	3.2 mm	Surface Mount	1206 (3216 Metric)	350 mcd	1.25 mm	640 nm
Kingbright APTR3216SURCK	Clear	Colorless	645 nm	20 mA	Rectangle with Flat Top	Red	Chip LED	1.95 V	630 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	80 mcd
Kingbright APTR3216PBC/A	Clear	Colorless	468 nm	20 mA	Rectangle with Flat Top	Blue	Chip LED	3.2 V	470 nm	1.05 mm	Standard	1.6 mm	1.4 mm	120 °	1.6 mm	3.2 mm	Surface Mount Bottom Entry	1206 (3216 Metric)	60 mcd
Kingbright APTR3216P3BT														140 °			Surface Mount	1206 (3216 Metric)				100 mW	Top View	30 V	100 nA	85 °C	-40 °C	940 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.43
		100	$ 0.28
		1000	$ 0.22
	Digi-Reel®	1	$ 0.65
		10	$ 0.43
		100	$ 0.28
		1000	$ 0.22
	Tape & Reel (TR)	2000	$ 0.20
		6000	$ 0.18
		10000	$ 0.18
		50000	$ 0.17

Description

General part information

APTR3216 Series

Red 625nm LED Indication - Discrete 2.2V 1206 (3216 Metric)
