SF1186G

Active

RFMi

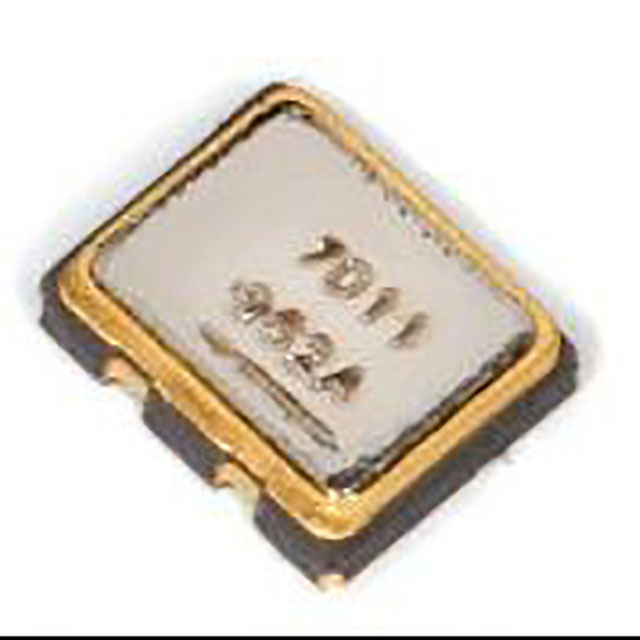

FILTER, SAW, 1575.42 MHZ, 4SMD

Search across all available documentation for this part.

Active

RFMi

FILTER, SAW, 1575.42 MHZ, 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Package / Case	Bandwidth	Insertion Loss	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Frequency - Center	Ratings	Height (Max) [Max]	Height (Max) [Max]
RFMi SF1186B-2	GPS	6-SMD No Lead	15.3 MHz	2.68 dB	0.054 in	1.38 mm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	1.57542 GHz
RFMi SF1186G	GPS	4-SMD No Lead	2 MHz	1.5 dB	0.039 in	1 mm	0.098 "	2.5 mm	2 mm	0.079 in	Surface Mount	1.57542 GHz	AEC-Q200
RFMi SF1186G-6	GPS	6-SMD No Lead	5 MHz	1.5 dB			0.098 "	2.5 mm	2 mm	0.079 in	Surface Mount	1.57542 GHz	AEC-Q200	0.75 mm	0.03 in
RFMi SF1186E-2	GPS	6-SMD No Lead	15.3 MHz	2.68 dB	0.054 in	1.38 mm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	1.57542 GHz	AEC-Q200
RFMi SF1186H-2	GPS	4-SMD No Lead	2 MHz	1.2 dB			0.079 in	2 mm	1.6 mm	0.063 in	Surface Mount	1.575 GHz		0.9 mm	0.035 in
RFMi SF1186H-3	GPS	4-SMD No Lead	2 MHz	1.2 dB			0.079 in	2 mm	1.6 mm	0.063 in	Surface Mount	1.575 GHz	AEC-Q200	0.9 mm	0.035 in
RFMi SF1186K-3	GPS	5-SMD No Lead	40 MHz	0.9 dB			0.057 in	1.45 mm	1.15 mm	0.045 in	Surface Mount	1.575 GHz		0.7 mm	0.028 in
RFMi SF1186B-3	GPS	6-SMD No Lead	18 MHz	2.68 dB	0.054 in	1.38 mm	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	1.57542 GHz	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.57542GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 1.5dB 2MHz Bandwidth 4-SMD, No Lead
