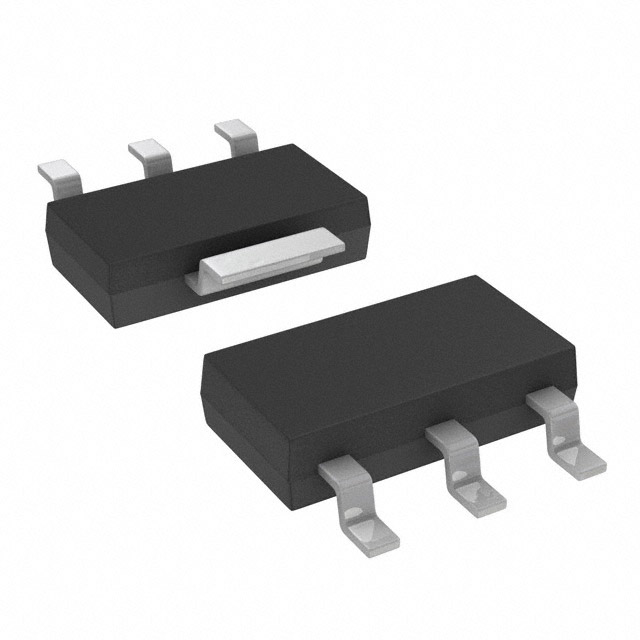

SX020V

Active

SMC Diode Solutions

SCR 600V 2A SOT223

Search across all available documentation for this part.

Active

SMC Diode Solutions

SCR 600V 2A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	SX020V

Current - Gate Trigger (Igt) (Max) [Max]	200 µA
Current - Hold (Ih) (Max) [Max]	5 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	20 A
Current - Off State (Max) [Max]	5 µA
Current - On State (It (RMS)) (Max) [Max]	2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-261AA, TO-261-4
SCR Type	Sensitive Gate
Supplier Device Package	SOT-223
Voltage - Gate Trigger (Vgt) (Max) [Max]	800 mV
Voltage - Off State	600 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	Supplier Device Package	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Mounting Type	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]	Package / Case	Current - Off State (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
SMC Diode Solutions SX020V	SOT-223	Sensitive Gate	20 A	110 °C	-40 °C	5 mA	2 A	Surface Mount	600 V	1.5 V	TO-261-4 TO-261AA	5 µA	800 mV	200 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 600 V 2 A Sensitive Gate Surface Mount SOT-223
