45850-503

Laird Thermal Systems, Inc.

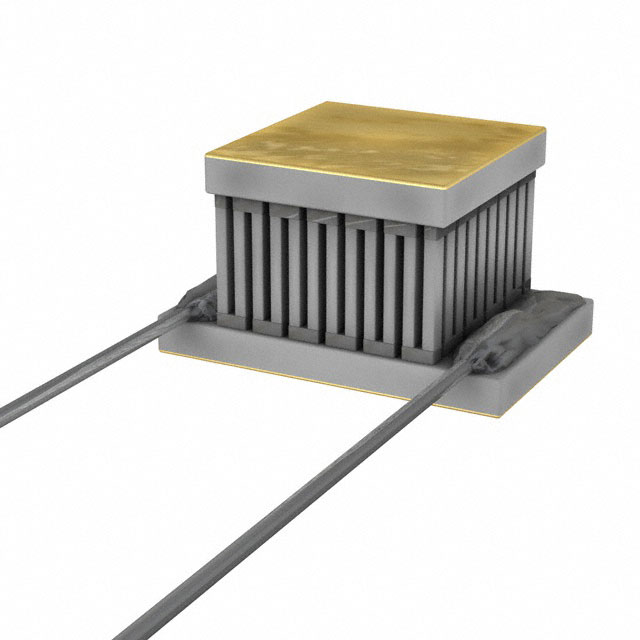

PELTIER OT08,08,F0,0303,GG,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER OT08,08,F0,0303,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Number of Stages	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Current - Max [Max]	Delta Tmax @ Th	Qmax @ Th	Features	Resistance	Height [z]	Operating Temperature
Laird Thermal Systems, Inc. 45850-502	1	5 mm	3.4 mm	1 V	800 mA	67 °C	0.4 W	Lapped Lead Wires Non-Sealed	1.04 Ohms	2.65 mm	80 °C
Laird Thermal Systems, Inc. 45850-503	1	3.4 mm	3.4 mm	1 V	800 mA	67 °C	0.4 W	Lead Wires Non-Sealed	1.18 Ohms	2.79 mm	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.94

General part information

Peltier Module 0.4W @ 25°C 0.8 A 80°C

Technical documentation and resources
