SIT9003AI-43-33DO-7.62750Y

Active

SiTime

MEMS OSC XO 7.6275MHZ LVCM LVTTL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT9003AI-43-33DO-7.62750Y

Active

SiTime

MEMS OSC XO 7.6275MHZ LVCM LVTTL

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT9003AI-43-33DO-7.62750Y

Base Resonator	MEMS
Current - Supply (Disable) (Max)	4.3 µA
Current - Supply (Max) [Max]	4.1 mA
Frequency	7.6275 MHz
Frequency Stability	50 ppm
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, LVTTL

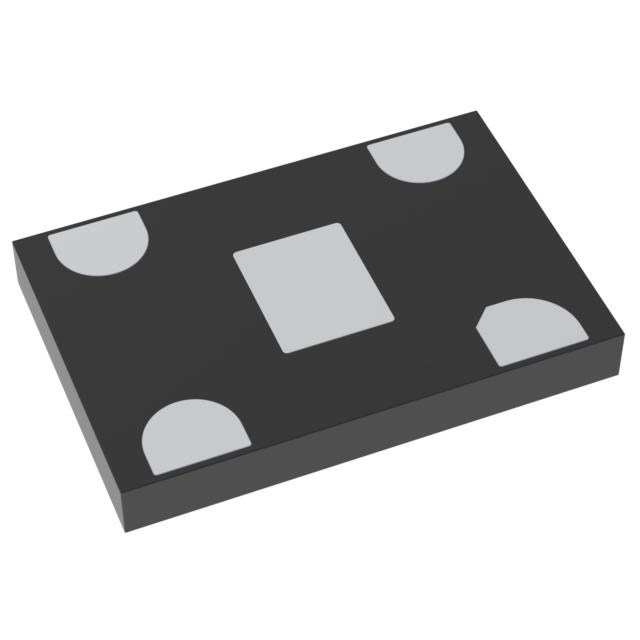

Package / Case	4-SMD, No Lead Exposed Pad
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Spread Spectrum Bandwidth	-1 %
Type	XO (Standard)
Voltage - Supply	3.3 V

SIT9003 Series

...

Part	Current - Supply (Max) [Max]	Type	Base Resonator	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply	Mounting Type	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Output	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Spread Spectrum Bandwidth	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Disable) (Max)	Current - Supply (Disable) (Max) [Max]
SiTime SIT9003AC-83-33ED-25.00000	4.1 mA	XO (Standard)	MEMS	25 MHz	-20 C	70 °C	4-SMD No Lead	3.3 V	Surface Mount	Enable/Disable	7 mm	5 mm	0.276 "	0.197 "	50 ppm	LVCMOS LVTTL	0.039 "	1 mm
SiTime SIT9003AI-33-33DB-32.00000	4.1 mA	XO (Standard)	MEMS	32 MHz	-40 °C	85 °C	4-SMD No Lead	3.3 V	Surface Mount		5 mm	3.2 mm	0.197 in	0.126 "	50 ppm	LVCMOS LVTTL			0.25 %	0.8 mm	0.031 "
SiTime SIT9003AI-43-33DO-7.62750Y	4.1 mA	XO (Standard)	MEMS	7.6275 MHz	-40 °C	85 °C	4-SMD No Lead Exposed Pad	3.3 V	Surface Mount		7 mm	5 mm	0.276 "	0.197 "	50 ppm	LVCMOS LVTTL	0.039 "	1 mm	-1 %			4.3 µA
SiTime SIT9003AC-13-33DQ-66.66666Y	4.1 mA	XO (Standard)	MEMS	66.66666 MHz	-20 C	70 °C	4-SMD No Lead	3.3 V	Surface Mount		2.5 mm	2 mm	0.098 "	0.079 in	50 ppm	LVCMOS LVTTL			-1 %	0.8 mm	0.031 "	4.3 µA
SiTime SIT9003AI-13-18DQ-45.00000Y	3.5 mA	XO (Standard)	MEMS	45 MHz	-40 °C	85 °C	4-SMD No Lead	1.8 V	Surface Mount		2.5 mm	2 mm	0.098 "	0.079 in	50 ppm	LVCMOS LVTTL			-1 %	0.8 mm	0.031 "		0.8 µA
SiTime SIT9003AI-13-33DB-14.74560Y	4.1 mA	XO (Standard)	MEMS	14.7456 MHz	-40 °C	85 °C	4-SMD No Lead	3.3 V	Surface Mount		2.5 mm	2 mm	0.098 "	0.079 in	50 ppm	LVCMOS LVTTL			0.25 %	0.8 mm	0.031 "
SiTime SIT9003AI-13-33EO-50.0000T	4.1 mA	XO (Standard)	MEMS	50 MHz	-40 °C	85 °C	4-SMD No Lead	3.3 V	Surface Mount	Enable/Disable	2.5 mm	2 mm	0.098 "	0.079 in	50 ppm	LVCMOS LVTTL				0.8 mm	0.031 "	4.3 µA
SiTime SIT9003AC-83-33ED-33.00000	4.1 mA	XO (Standard)	MEMS	33 MHz	-20 C	70 °C	4-SMD No Lead	3.3 V	Surface Mount	Enable/Disable	7 mm	5 mm	0.276 "	0.197 "	50 ppm	LVCMOS LVTTL	0.039 "	1 mm
SiTime SIT9003AC-14-33ED-24.00000T	4.1 mA	XO (Standard)	MEMS	24 MHz	-20 C	70 °C	4-SMD No Lead	3.3 V	Surface Mount	Enable/Disable	2.5 mm	2 mm	0.098 "	0.079 in	100 ppm	LVCMOS LVTTL				0.8 mm	0.031 "	4.3 µA
SiTime SIT9003AC-23-33DQ-12.000000X	4.1 mA	XO (Standard)	MEMS	12 MHz	-20 C	70 °C	4-SMD No Lead	3.3 V	Surface Mount		3.2 mm	2.5 mm	0.126 in	0.098 in	50 ppm	LVCMOS LVTTL			-1 %	0.8 mm	0.031 "	4.3 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 2.23

Description

General part information

SIT9003 Series

7.6275 MHz XO (Standard) LVCMOS, LVTTL Oscillator 3.3V 4-SMD, No Lead Exposed Pad
