LC4032V-5TN44C

Active

LATTICE SEMICONDUCTOR

IC CPLD 32MC 5NS 44TQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Selector Guide +1

LC4032V-5TN44C

Active

LATTICE SEMICONDUCTOR

IC CPLD 32MC 5NS 44TQFP

Deep-Dive with AI

DocumentsDatasheet Product Selector Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LC4032V-5TN44C

Delay Time tpd(1) Max [Max]	5 ns
Mounting Type	Surface Mount
Number of I/O	30 I/O
Number of Logic Elements/Blocks	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	0 °C

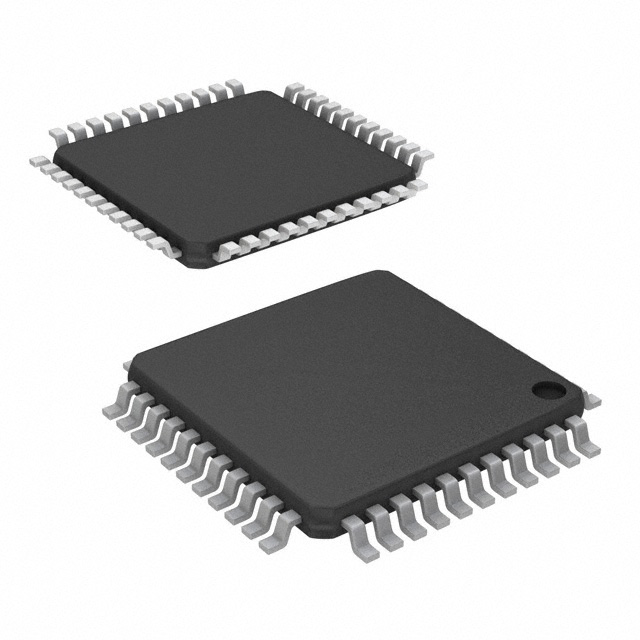

Package / Case	44-TQFP
Programmable Type	In System Programmable
Supplier Device Package	44-TQFP (10x10)
Voltage Supply - Internal [Max]	3.6 V
Voltage Supply - Internal [Min]	3 V

LC4032 Series

Part	Delay Time tpd(1) Max [Max]	Supplier Device Package	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Logic Elements/Blocks	Number of I/O	Programmable Type	Operating Temperature [custom]
LATTICE SEMICONDUCTOR LC4032ZE-5TN48C	5.8 ns	48-TQFP (7x7)	1.7 V	1.9 V	48-LQFP	0 °C	90 °C	Surface Mount	2	32	In System Programmable
LATTICE SEMICONDUCTOR LC4032V-75TN48I	7.5 ns	48-TQFP (7x7)	3 V	3.6 V	48-LQFP			Surface Mount	2	32	In System Programmable	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC4032ZC-5M56C	5 ns	56-CSBGA (6x6)	1.7 V	1.9 V	56-LFBGA CSPBGA	0 °C	90 °C	Surface Mount	2	32	In System Programmable
LATTICE SEMICONDUCTOR LC4032ZE-4TN48C	4.4 ns	48-TQFP (7x7)	1.7 V	1.9 V	48-LQFP	0 °C	90 °C	Surface Mount	2	32	In System Programmable
LATTICE SEMICONDUCTOR LC4032B-75TN48C	7.5 ns	48-TQFP (7x7)	2.3 V	2.7 V	48-LQFP	0 °C	90 °C	Surface Mount	2	32	In System Programmable
LATTICE SEMICONDUCTOR LC4032ZC-75M56C	7.5 ns	56-CSBGA (6x6)	1.7 V	1.9 V	56-LFBGA CSPBGA	0 °C	90 °C	Surface Mount	2	32	In System Programmable
LATTICE SEMICONDUCTOR LC4032ZC-75MN56I	7.5 ns	56-CSBGA (6x6)	1.7 V	1.9 V	56-LFBGA CSPBGA			Surface Mount	2	32	In System Programmable	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC4032V-5TN44C	5 ns	44-TQFP (10x10)	3 V	3.6 V	44-TQFP	0 °C	90 °C	Surface Mount	2	30 I/O	In System Programmable
LATTICE SEMICONDUCTOR LC4032ZC-75T48I	7.5 ns	48-TQFP (7x7)	1.7 V	1.9 V	48-LQFP			Surface Mount	2	32	In System Programmable	-40 °C 105 °C
LATTICE SEMICONDUCTOR LC4032B-10TN44I	10 ns	44-TQFP (10x10)	2.3 V	2.7 V	44-TQFP			Surface Mount	2	30 I/O	In System Programmable	-40 °C 105 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	800	$ 4.42
Newark	Each	500	$ 4.53

Description

General part information

LC4032 Series

IC CPLD 32MC 5NS 44TQFP

Documents

Technical documentation and resources

Datasheet

Product Selector Guide

Datasheet

Leaded Pkg PCB Layout Guide

Datasheet
