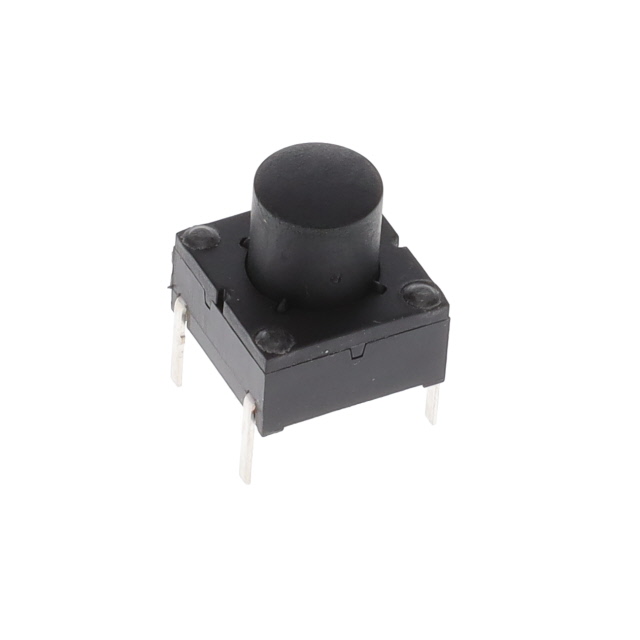

ME0111.0F3502

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	ME0111.0F3502

Actuator Height off PCB, Vertical	11 mm
Actuator Material	Polyamide (PA6T), Nylon 6T
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Force	350 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

Part	Switch Function	Ingress Protection	Switch Travel	Circuit	Actuator Height off PCB, Vertical	Actuator Material	Mounting Type	Outline [y]	Outline [x]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Operating Force	Actuator Orientation	Illumination	Termination Style
CIT Relay and Switch ME0111.0F3502	Off-Mom	IP67 - Dust Tight Waterproof	1 mm	SPST-NO	11 mm	Polyamide (PA6T) Nylon 6T	Through Hole	10 mm	10 mm	Standard	85 °C	-40 °C	0.05 A 24 VDC	350 gf	Top Actuated	Non-Illuminated	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
