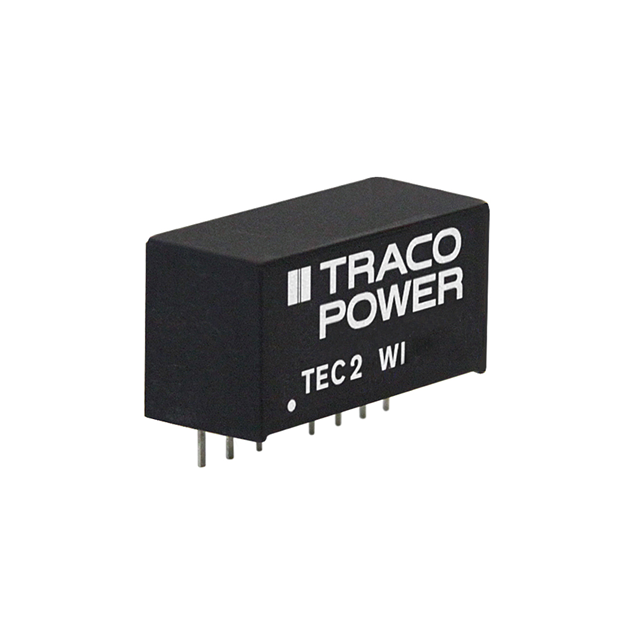

TEC 2-1221WI

Active

Traco Power

DC DC CONVERTER +/-5V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEC 2-1221WI

Active

Traco Power

DC DC CONVERTER +/-5V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEC 2-1221WI

Applications	ITE (Commercial)
Efficiency	80 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	93 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.86 in
Size / Dimension [x]	21.8 mm
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.1 mm
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

TEC 2 Series

Part	Number of Outputs	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Package / Case	Package / Case	Applications	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Features	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TEC 2-1211	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	5 V	2 W	-40 °C	95 °C	400 mA	Remote On/Off SCP	Isolated Module	18 V	9 V
Traco Power TEC 2-2419	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	9 V	2 W	-40 °C	95 °C	222 mA	Remote On/Off SCP	Isolated Module	36 V	18 V	85 %
Traco Power TEC 2-0913	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	15 V	2 W	-40 °C	95 °C	134 mA	Remote On/Off SCP	Isolated Module	13.2 V	4.5 V	84 %
Traco Power TEC 2-1221WI	2	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	5 V	2 W	-40 °C	93 °C		Remote On/Off SCP	Isolated Module	18 V	4.5 V	80 %	-5 V
Traco Power TEC 2-1222	2	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	12 V	2 W	-40 °C	95 °C		Remote On/Off SCP	Isolated Module	18 V	9 V	85 %	-12 V	83 mA	83 mA
Traco Power TEC 2-0912	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	12 V	2 W	-40 °C	95 °C	167 mA	Remote On/Off SCP	Isolated Module	13.2 V	4.5 V	84 %
Traco Power TEC 2-2415WI	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	24 V	2 W	-40 °C	93 °C	83 mA	Remote On/Off SCP	Isolated Module	36 V	9 V
Traco Power TEC 2-1212	1	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	12 V	2 W	-40 °C	95 °C	167 mA	Remote On/Off SCP	Isolated Module	18 V	9 V	85 %
Traco Power TEC 2-4823	2	1.6 kV	0.86 in	21.8 mm	11.2 mm	0.44 "	0.36 "	9.1 mm	Through Hole	8-SIP Module	7 Leads	ITE (Commercial)	15 V	2 W	-40 °C	95 °C		Remote On/Off SCP	Isolated Module	75 V	36 V	83 %	-15 V		67 mA	67 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.28
		10	$ 12.10
		25	$ 11.91
		50	$ 11.54
		100	$ 10.42
		250	$ 10.24
		500	$ 10.05

Description

General part information

TEC 2 Series

Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 18V Input
